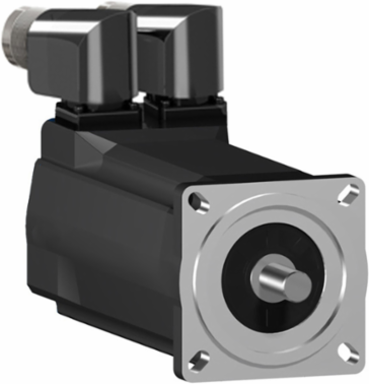

Schneider Electric SH30702P02A2100 Servo Motor 2.04 Nm, 8k RPM, IP65, 3 Phase, 2.8 kg
Schneider Electric SH30702P02A2100 Servo Motor 2.04 Nm, 8k RPM, IP65, 3 Phase, 2.8 kg
- MPN: SH30702P02A2100
- PPN: SCH-SH30702P02A2100
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3862.97/ EA
Description
The Schneider Electric Servo Motor combines robust engineering with precise performance, making it an essential component in automation and control applications. With a torque rating of 2.04 Nm and an impressive speed of 8,000 RPM, this three-phase motor is well-suited for high-speed motion control tasks. Its IP65 rating ensures excellent protection against dust and water, allowing for reliable operation in demanding environments. Weighing in at just 2.8 kg, this motor is designed for streamlined integration into various industrial systems, where reliable and efficient motion control is paramount.
Specifications
- Torque
- 2.04 N.m
- Phase
- Three phase
- Continuous Stall Current
- 2.9 A
- Continuous Power
- 1130 W
- Nominal Output Power
- 340 W 115 V single phase, 660 W 230 V single phase, 1190 W 400 V three phase, 1360 W 480 V three phase
- Nominal Speed
- 1500 rpm 115 V single phase, 3000 rpm 230 V single phase, 6000 rpm 400 V three phase, 7200 rpm 480 V three phase
- Maximum Radial Force
- 710 N 1000 rpm, 560 N 2000 rpm, 490 N 3000 rpm, 450 N 4000 rpm, 410 N 5000 rpm, 390 N 6000 rpm
- Shaft Diameter
- 11 mm
- Encoder Type
- Absolute multiturn SinCos Hiperface
- Holding Brake
- Without
- Motor Flange Size
- 70 mm
- Length
- 187 mm
- Centring Collar Depth
- 2.5 mm
- Mounting Holes Diameter
- 5.5 mm
- Torque Constant
- 0.7 N.m/A 120 C
- Number of Motor Poles
- 3
- Stator Resistance
- 4.2 Ohm
- Type of Cooling
- Natural convection
- Mercury Free
- Yes
- Warranty
- 18 months
- Weee
- Must be disposed in EU according to waste collection
- China RoHS Regulation
- X
- Rohs Exemption Information
- Yes
- Range Compatibility
- PacDrive 3
- Shaft End
- Smooth shaft
Maximum Mechanical Speed8000 rpm
Rated Supply Voltage115...480 V
Continuous Stall Torque2.04 N.m 115...480 V three phase
Peak Stall Torque7.6 N.m 115...480 V three phase
Nominal Torque2.15 N.m 115 V single phase, 2.1 N.m 230 V single phase, 1.8 N.m 400 V & 480 V three phase
Maximum Current Irms11.8 A
Maximum Axial Force80 N
Shaft Length23 mm
Speed Feedback Resolution128 periods
Mounting SupportInternational standard flange
Electrical ConnectionStraight connector
Centring Collar Diameter60 mm
Number of Mounting Holes4
Circle Diameter of Mounting Holes82 mm
Back EMF Constant48 V/krpm 20 C
Rotor Inertia0.41 kg.cm
Stator Inductance29.65 mH
IP Degree of ProtectionIP65 motor: conforming to EN/IEC 60034-5
Pvc FreeYes
Environmental DisclosureENVPEP111049EN
Reach RegulationContains SVHC above threshold
EU RoHS DirectivePro-active compliance (out of EU RoHS legal scope)
Product Or Component TypeServo motor
Device Short NameSH3.....P
