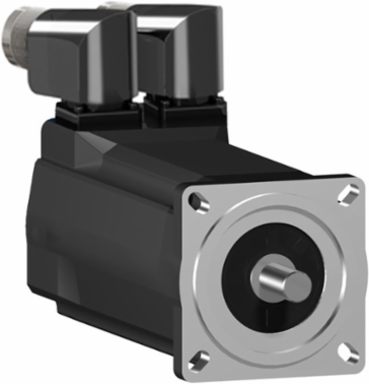

Schneider Electric SH30703P11F2000 Servo Motor 2.94 Nm, 8000 RPM, IP54/IP65, 3-Phase
- MPN: SH30703P11F2000
- PPN: SCH-SH30703P11F2000
CAD
$3800.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric SH30703P11F2000 Servo Motor is engineered for high performance in automation and control applications. With a robust torque rating of 2.94 Nm and impressive speeds of up to 8000 RPM, this 3-phase motor provides the precision and reliability necessary for demanding motion control tasks. Its IP54/IP65 rating ensures protection against dust and water, making it suitable for a variety of industrial environments. This servo motor stands out for its combination of durability and efficiency, making it a smart choice for enhancing productivity in your automated systems.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 11.3 N.m 115...480 V three phase
- Nominal Torque
- 2.95 N.m 115 V single phase || 2.8 N.m 230 V single phase || 2.1 N.m 400 V three phase || 2.1 N.m 480 V three phase
- Continuous Power
- 1330 W
- Continuous Stall Current
- 4.1 A
- Maximum Current Irms
- 17 A
- Back Emf Constant
- 49 V/krpm 20 C
- Maximum Axial Force Fa
- 80 N
- Shaft Diameter
- 14 mm
- Key Width
- 5 mm
- Number Of Mounting Holes
- 4
- Motor Flange Size
- 70 mm
- Centring Collar Diameter
- 60 mm
- Shaft End
- parallel key
- Electrical Connection
- straight connector
- Holding Torque
- 3 N.m
- Type Of Cooling
- natural convection
- Speed Feedback Resolution
- 128 periods
- Stator Inductance
- 20.3 mH
- Network Number Of Phases
- three phase
- Mercury Free
- Yes
- RoHS Compliant
- Yes
Nominal Output Power460 W 115 V single phase || 880 W 230 V single phase || 1450 W 400 V three phase || 1550 W 480 V three phase
Nominal Speed1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase
Continuous Stall Torque2.94 N.m 115...480 V three phase
Maximum Mechanical Speed8000 rpm
Torque Constant0.72 N.m/A 120 C
Maximum Radial Force Fr730 N 1000 rpm || 580 N 2000 rpm || 510 N 3000 rpm || 460 N 4000 rpm || 430 N 5000 rpm || 400 N 6000 rpm
Number Of Motor Poles3
Shaft Length30 mm
Circle Diameter Of The Mounting Holes82 mm
Mounting Holes Diameter5.5 mm
Length254 mm
Centring Collar Depth2.5 mm
Mounting Supportinternational standard flange
Holding Brakewith
Ip Degree Of ProtectionIP54 shaft bushing without shaft seal ring; IP65 motor and shaft bushing, IEC 60034-5
Encoder Typeabsolute single turn SinCos Hiperface
Stator Resistance2.7 Ohm
Rotor Inertia0.807 kg.cm
Rated Supply Voltage115...480 V
Pvc FreeYes
Country of OriginGermany
