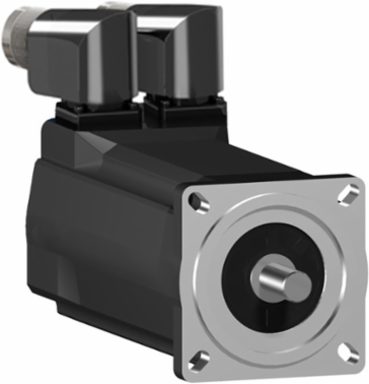

Schneider Electric SH30703P02A2100 Servo Motor 2.94 Nm, 8000 RPM, IP65, 3 Phase, 220 mm Length
- MPN: SH30703P02A2100
- PPN: SCH-SH30703P02A2100
CAD
$4267.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and reliability, the Schneider Electric SH30703P02A2100 Servo Motor is a robust solution for various motion control applications. With an impressive torque of 2.94 Nm and a maximum speed of 8000 RPM, this three-phase motor excels in delivering high performance while maintaining exceptional efficiency. Designed to withstand challenging environments, its IP65 rating ensures protection against dust and moisture, making it ideal for industrial settings. With a compact length of 220 mm, this servo motor combines powerful functionality and durability, well-suited for automation and control tasks in diverse industrial applications.
Documentation & Downloads
Specifications
Additional
- Torque
- 2.94 N.m continuous stall, 11.3 N.m peak stall
- Nominal Speed
- 1500 rpm 115 V single phase, 3000 rpm 230 V single phase, 6000 rpm 400 V three phase, 7200 rpm 480 V three phase
- Continuous Power
- 1330 W
- Continuous Stall Current
- 4.1 A
- Phase
- Three phase
- Shaft Diameter
- 14 mm
- Mounting Support
- International standard flange
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 82 mm
- Centring Collar Depth
- 2.5 mm
- Shaft End
- Smooth shaft
- Material
- Not specified
- Encoder Type
- Absolute multiturn SinCos Hiperface
- Torque Constant
- 0.72 N.m/A 120 °C
- Number of Motor Poles
- 3
- Stator Resistance
- 2.7 Ohm
- Maximum Radial Force
- 730 N 1000 rpm, 580 N 2000 rpm, 510 N 3000 rpm, 460 N 4000 rpm, 430 N 5000 rpm, 400 N 6000 rpm
- Type of Cooling
- Natural convection
- Mercury Free
- Yes
- WEEE Compliance
- Compliant with EU WEEE disposal
- Sustainable Offer Status
- Green Premium product
- RoHS Exemption Information
- Yes
- Warranty
- 18 months
- Range Compatibility
- PacDrive 3
- Network Number Of Phases
- Three phase
Maximum Speed8000 rpm
Nominal Torque2.95 N.m 115 V single phase, 2.8 N.m 230 V single phase, 2.1 N.m 400 V three phase, 2.1 N.m 480 V three phase
Maximum Current Irms17 A
Rated Supply Voltage115...480 V
Length220 mm
Shaft Length30 mm
Motor Flange Size70 mm
Mounting Holes Diameter5.5 mm
Centring Collar Diameter60 mm
Net Weight3.6 kg
Electrical ConnectionStraight connector
IP RatingIP65 motor and shaft bushing conforming to EN/IEC 60034-5
Speed Feedback Resolution128 periods
Back EMF Constant49 V/krpm 20 °C
Rotor Inertia0.58 kg.cm²
Stator Inductance20.3 mH
Maximum Axial Force80 N
Environmental DisclosureENVPEP111049EN
PVC FreeYes
REACH RegulationContains Substances of Very High Concern above threshold
EU RoHS DirectivePro-active compliance, product out of EU RoHS legal scope
China RoHS RegulationX
Product Or Component TypeServo motor
Device Short NameSH3.....P
Circularity ProfileN/A
