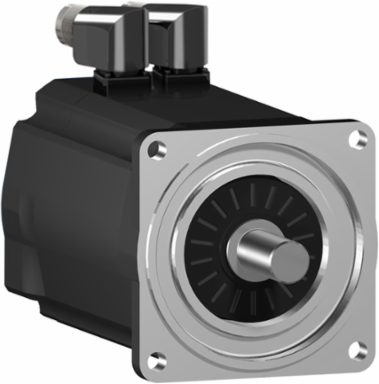

Schneider Electric SH31001P12A2000 Servo Motor 100 mm Flange, 2.94 Nm Torque, 6000 RPM
- MPN: SH31001P12A2000
- PPN: SCH-SH31001P12A2000
- UNSPSC: 39121021
CAD
$3616.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric SH31001P12A2000 Servo Motor is engineered for high performance in the realm of motion control, featuring a 100 mm flange size that fits seamlessly into various automation applications. With a robust torque output of 2.94 Nm and an impressive rotational speed of 6000 RPM, this motor is designed to deliver exceptional response and precision, making it ideal for demanding tasks that require reliable operation and efficiency. Whether you're upgrading an existing system or creating a new one, this servo motor stands out for its ability to enhance operational effectiveness in automated environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|
| Weight | 4200 g |
|---|
Physical Attributes
| Key Width | 6 mm |
|---|---|
| Shaft Length | 40 mm |
| Motor Flange Size | 100 mm |
|---|
Complementary Attributes
| Minimum Ambient Air Temperature For Operation | -20.0 °C, -20.0 °C |
|---|---|
| Maximum Ambient Air Temperature For Operation | 60.0 °C |
| Maximum Current Irms | 12.0 A |
| Maximum Operational Altitude | 3000.0 m |
| Minimum Operational Altitude | 0.0 m |
| Maximum In Rated Current | 2.8 A |
| Line Rated Current | 2.8 A |
|---|---|
| Maximum Axial Force Fa | 160 N |
| Maximum Mechanical Speed | 6000 rpm |
| Maximum Radial Force Fr | 900 N 1000 rpm720 N 2000 rpm630 N 3000 rpm570 N 4000 rpm530 N 5000 rpm |
| Us Rated Supply Voltage | 115...480 V |
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Nominal Speed | 5000 rpm, 1250 rpm 115 V single phase2500 rpm 230 V single phase, 5000 rpm 400 V three phase6000 rpm 480 V three phase |
| Carbon Footprint Of The Distribution Phase A4 | 2.0679793383929677, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.024848318063566098, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 1 147 kg CO2 eq., 1146.5097622239382 |
| Local Publishable Date | 2026-01-12 |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Circle Diameter Of The Mounting Holes | 115 mm |
| Continuous Stall Current | 3.5 A |
| Derating Altitude Scale | 80.0 m |
| Derating Temperature Scale | 80.0 °C |
| Device Short Name | SH3 |
| Encoder Type | absolute multiturn SinCos Hiperface |
| Inertia | 0.0 kg.cm² of brake1.4 kg.cm² of motor |
| Mounting Holes Diameter | 9.0 mm |
| Network Number Of Phases | 3 |
| Number Of Mounting Holes | 4 |
| Peak Stall Torque | 9.6 N.m 115...480 V three phase |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | Yes |
| Shaft Diameter | 19 mm |
| Sizing Reference | SH31001P |
| Speed Feedback Resolution | 128 periods |
| Stator Resistance | 3.8 Ohm |
| Temperature Copper Hot | 130 °C |
| Total Lifecycle Carbon Footprint | 1 170 kg CO2 eq. |
| Database Version | 2024-01 |
| Length Total | 168.5 mm |
| Customs Code | 8501524000 |
| Functional Unit Description | To coordinate and synchronize motion control to operate in active mode 50% of the time with a power consumption of 100W, in stand-by mode 20% of the time with a power consumption of 10W, and in off mode 30% of the time with zero power consumption, over a period of 10 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 2733.12 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Nominal Torque | 2.91 N.m 115 V single phase2.64 N.m 230 V single phase, 2.27 N.m 400 V three phase, 2.27 N.m 480 V three phase2.27 N.m full speed3.0 N.m half speed |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 5 kg CO2 eq., 4.812677194402697 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 17 kg CO2 eq., 16.676245284196284 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Centring Collar Diameter | 95 mm |
| Continuous Power | 1190 W |
| Continuous Stall Torque | 2.94 N.m 115...480 V three phase |
| Derating Altitude Start | 1000.0 m |
| Derating Temperature Start | 40.0 °C |
| Electrical Connection | rotatable right angled connector |
| Holding Brake | without |
| Motor Figures | 400.0 V |
| Mounting Support | international standard flange |
| Number Of Motor Poles | 4.0 |
| Peak Nominal Torque | 9.6 N.m |
| Phase | three phase |
| Product Or Component Type | servo motor |
| Rotor Inertia | 1.4 kg.cm² |
| Shaft End | parallel key |
| Software Version | v6.2.5-6 |
| Stator Inductance | 9.5 mH |
| Sustainable Packaging | No |
| Torque Constant | 0.84 N.m/A 120 °C |
| Type Of Cooling | natural convection |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 87 |
Environment Attributes Main
| Ip Degree Of Protection | IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5IP65 motor: conforming to IEC 60034-5, IP65 shaft bushing: conforming to IEC 60034-5 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111049EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-08-25 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 1170.091512358994 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP111049EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Phase | three phase |
|---|
| Product Or Component Type | servo motor |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|---|
| ETIM 10 | EC001851 |
| ETIM 9 | EC001851 |
|---|
Output Attributes
| Nominal Output Power | 410 W 115 V single phase790 W 230 V single phase, 1410 W 400 V three phase1630 W 480 V three phase |
|---|
| Output Current 3s Peak | 12.0 A |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
