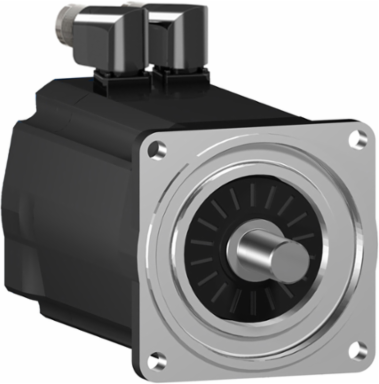

Schneider Electric SH31003P11F2200 Servo Motor 8 N.m, 6000 RPM, 100 mm Flange, IP65/IP67
- MPN: SH31003P11F2200
- PPN: SCH-SH31003P11F2200
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for precision and reliability, this servo motor from Schneider Electric is an essential component for automation and control applications. With a torque rating of 8 N.m and a high-speed capability of 6000 RPM, it is designed to deliver optimal performance in various motion control tasks. The motor features a 100 mm flange size, ensuring compatibility with a wide range of equipment, while its IP65/IP67 protection rating guarantees durability in demanding environments. This makes it an ideal choice for applications that require both robustness and efficiency in their motion systems.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 8 N.m 115...480 V three phase
- Nominal Output Power
- 790 W 115 V single phase || 1470 W 230 V single phase || 2390 W 400 V three phase || 2560 W 480 V three phase
- Maximum Mechanical Speed
- 6000 rpm
- Continuous Stall Current
- 6.6 A
- Torque Constant
- 1.22 N.m/A 120 B0C
- Number Of Motor Poles
- 4
- Maximum Axial Force
- 160 N
- Flange Size
- 100 mm
- Circle Diameter Of The Mounting Holes
- 115 mm
- Centring Collar Diameter
- 95 mm
- Net Weight
- 8 kg
- Shaft Length
- 40 mm
- Shaft End
- parallel key
- Electrical Connection
- rotatable right angled connector
- Type Of Cooling
- natural convection
- Reach Regulation
- Contains SVHC above threshold
- Eu Rohs Directive
- Pro-active compliance (product out of EU RoHS scope)
- Pvc Free
- Yes
- Warranty
- 18 months
- Sustainable Offer Status
- Green Premium product
- Environmental Disclosure
- ENVPEP111049EN
Peak Stall Torque28.3 N.m 115...480 V three phase
Nominal Torque5.1 N.m 480 V three phase || 7.5 N.m 115 V single phase || 7 N.m 230 V single phase || 5.7 N.m 400 V three phase
Maximum Current Irms28.3 A
Continuous Power2400 W
Back Emf Constant77 V/krpm 20 B0C
Maximum Radial Force1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm
Length271.5 mm
Number Of Mounting Holes4
Mounting Holes Diameter9 mm
Centring Collar Depth3.5 mm
Shaft Diameter19 mm
Key Width6 mm
Mounting Supportinternational standard flange
Encoder Typeabsolute single turn SinCos Hiperface
Ip Degree Of ProtectionIP65 motor, shaft bushing; IP67 housing (EN/IEC 60034-5)
China Rohs RegulationCompliant
Mercury FreeYes
Rohs Exemption InformationYes
Product Or Component Typeservo motor
Range CompatibilityPacDrive 3
WeeeEU disposal compliant
