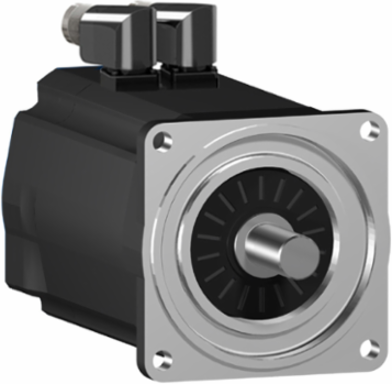

Schneider Electric SH31401P12A2000 Servo Motor 11.1 Nm Torque, 4000 RPM, IP54/IP65 Protection
- MPN: SH31401P12A2000
- PPN: SCH-SH31401P12A2000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric SH31401P12A2000 servo motor is engineered for superior performance in motion control applications, offering a robust torque of 11.1 Nm and a remarkable speed of up to 4000 RPM. This motor is designed with an IP54/IP65 protection rating, ensuring reliable operation in environments exposed to dust and moisture. With its precision and durability, this servo motor is an excellent choice for automation and control processes that demand efficiency and strength in motion.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 27 N.m 115...480 V three phase
- Continuous Power
- 2900 W
- Nominal Torque
- 10.95 N.m 115 V single phase || 10.6 N.m 230 V single phase || 9.2 N.m 400 V three phase || 8.4 N.m 480 V three phase
- Maximum Mechanical Speed
- 4000 rpm
- Torque Constant
- 1.43 N.m/A 120 0C
- Stator Resistance
- 1.41 Ohm
- Maximum Radial Force Fr
- 1930 N 1000 rpm || 1530 N 2000 rpm || 1340 N 3000 rpm
- Phase
- three phase
- Shaft Length
- 50 mm
- Key Width
- 8 mm
- Centring Collar Diameter
- 130 mm
- Mounting Holes Diameter
- 11 mm
- Circle Diameter Of The Mounting Holes
- 165 mm
- Mounting Support
- international standard flange
- Electrical Connection
- rotatable right angled connector
- Encoder Type
- absolute multiturn SinCos Hiperface
- Type Of Cooling
- natural convection
- Product Or Component Type
- servo motor
- Environmental Disclosure
- ENVPEP111049EN
- Rohs Exemption Information
- Yes
- China Rohs Regulation
- X
- Pvc Free
- Yes
- Warranty
- 18 months
- Sustainable Offer Status
- Green Premium product
- Country of Origin
- Germany
Continuous Stall Torque11.1 N.m 115...480 V three phase
Nominal Output Power860 W 115 V single phase || 1670 W 230 V single phase || 2890 W 400 V three phase || 3170 W 480 V three phase
Nominal Speed750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
Maximum Current Irms20.8 A
Back Emf Constant100 V/krpm 20 0C
Stator Inductance23.72 mH
Maximum Axial Force Fa300 N
Length217.5 mm
Shaft Diameter24 mm
Motor Flange Size140 mm
Centring Collar Depth3.5 mm
Number Of Mounting Holes4
Net Weight11.9 kg
Shaft Endparallel key
Number Of Motor Poles5
Speed Feedback Resolution128 periods
Protection RatingIP54 shaft bushing without shaft seal ring: conforming to EN/IEC 60034-5 || IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5
Range CompatibilityPacDrive 3
Reach RegulationContains Substances of Very High Concern above threshold
Eu Rohs DirectiveProduct out of EU RoHS legal scope
Mercury FreeYes
WeeeMust be disposed per EU waste collection
Device Short NameSH3.....P
Circularity ProfileN/A
