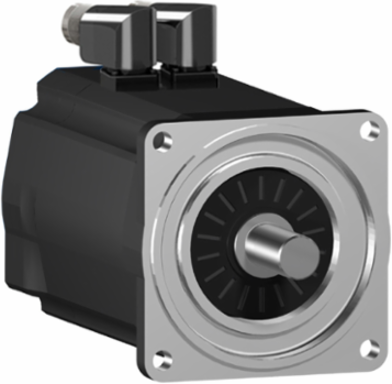

Schneider Electric SH31404P02F2100 Servo Motor 140mm, 33.4 N.m, IP65, 4000 RPM, 27.8 kg
- MPN: SH31404P02F2100
- PPN: SCH-SH31404P02F2100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for high-performance motion control applications, the Schneider Electric servo motor offers impressive specifications that will enhance your automation systems. With a robust torque of 33.4 N.m and a maximum speed of 4000 RPM, it delivers dynamic performance suitable for a wide range of industrial tasks. The IP65 rating ensures that the motor is protected against dust and water, making it reliable for demanding environments. Weighing in at 27.8 kg, this motor combines durability with precision engineering, making it an essential choice for optimizing operational efficiency in your projects.
Documentation & Downloads
Specifications
Additional
- Torque
- 33.4 N.m
- Continuous Stall Torque
- 33.4 N.m
- Peak Stall Torque
- 131.9 N.m
- Nominal Torque
- 30.2 N.m 115 V single phase, 26.3 N.m 230 V single phase, 12.9 N.m 400 V three phase, 11.1 N.m 480 V three phase
- Continuous Stall Current
- 21.3 A
- Maximum Axial Force
- 300 N
- Holding Torque
- 36 N.m
- Back EMF Constant
- 104 V/krpm 20 B0C
- Stator Resistance
- 0.28 Ohm
- IP Degree of Protection
- IP65 motor and shaft bushing to EN/IEC 60034-5
- Phase
- Three phase
- Shaft Diameter
- 24 mm
- Shaft End
- Smooth shaft
- Motor Flange Size
- 140 mm
- Centring Collar Depth
- 3.5 mm
- Mounting Holes Diameter
- 11 mm
- Weight
- 27.8 kg
- Type of Cooling
- Natural convection
- Speed Feedback Resolution
- 128 periods
- Rotor Inertia
- 29.2 kg.cmB2
Maximum Speed4000 rpm
Continuous Power4040 W
Nominal Output Power2370 W 115 V single phase, 4130 W 230 V single phase, 4040 W 400 V three phase, 4190 W 480 V three phase
Nominal Speed750 rpm 115 V single phase, 1500 rpm 230 V single phase, 3000 rpm 400 V three phase, 3600 rpm 480 V three phase
Maximum Current Irms95.6 A
Maximum Radial Force2660 N @ 1000 rpm, 2110 N @ 2000 rpm, 1840 N @ 3000 rpm
Torque Constant1.57 N.m/A 120 B0C
Number of Motor Poles5
Stator Inductance5.945 mH
Rated Supply Voltage115-480 V three phase
Electrical ConnectionRotatable right angled connector
Shaft Length50 mm
Mounting SupportInternational standard flange
Centring Collar Diameter130 mm
Number of Mounting Holes4
Circle Diameter of Mounting Holes165 mm
Length420.5 mm
Encoder TypeAbsolute multiturn SinCos Hiperface
Holding BrakeWith
