Weidmuller 2506090000 SET AAP11 6/1.5/12C
- MPN: 2506090000
- PPN: WDM-2506090000
CAD
$56.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

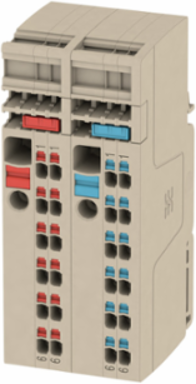

Modular distribution terminals, PUSH IN, 6 mm², 500 V, 35 A, dark beige
Documentation & Downloads
Specifications
Approvals
| Approvals | CE |
|---|
Dimensions And Weights
| Width | 35 mm |
|---|---|
| Height | 85.5 mm |
| Depth | 47 mm |
| Depth including DIN rail | 48 mm |
| Width (inches) | 1.378 inch |
|---|---|
| Height (inches) | 3.366 inch |
| Depth (inches) | 1.85 inch |
| Net weight | 73.547 g |
Additional Technical Data
| Installation advice | Rail |
|---|---|
| Type of fixing | Snap-on |
| Open sides | right |
|---|---|
| Type of mounting | TS 35 |
Material Data
| Material | Wemid |
|---|---|
| Colour of operational elements | red |
| Colour | dark beige |
|---|---|
| UL 94 flammability rating | V-0 |
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
System Specifications
| End cover plate required | No |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 2 |
| PE connection | No |
| N-function | No |
| PEN function | No |
| Number of potentials | 2 |
|---|---|
| Number of clamping points per level | 26 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Conductors For Clamping (Additional Connection)
| Blade size, additional connection | 0.4 x 2.0 mm |
|---|---|
| Clamping range, further connection, min. | 0.14 mm |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min. | 0.5 mm |
| Connection direction | top |
| Cross-section for connected wire, AWG, additional connection, max. | AWG 14 |
| Cross-section for connected wire, flexible, further connection, max. | 1.5 mm |
| Cross-section for connected wire, multi-core, further connection, min. | 0.5 mm |
| Cross-section for connected wire, solid-core, further connection, min. | 0.5 mm |
| Stripping length , additional connection | 8 mm |
| Clamping range, further connection, max. | 1.5 mm |
|---|---|
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 1 mm |
| Conductor cross-section, flexible, further connection, min. | 0.5 mm |
| Connection type, additional connection | PUSH IN |
| Cross-section for connected wire, AWG, additional connection, min. | AWG 26 |
| Cross-section for connected wire, multi-core, further connection, max. | 1.5 mm |
| Cross-section for connected wire, solid-core, further connection, max. | 1.5 mm |
| Rated cross-section, further connection | 1.5 mm |
Rating Data
| Rated cross-section | 6 mm² |
|---|---|
| Rated current | 35 A |
| Standards | In accordance with IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Pollution severity | 3 |
| Rated voltage | 500 V |
|---|---|
| Current at maximum wires | 41 A |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Surge voltage category | III |
Conductors For Clamping (Rated Connection)
| Blade size | 1.0 x 5.5 mm |
|---|---|
| Clamping range, min. | 0.34 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Gauge to IEC 60947-1 | A5 |
| Stripping length | 12 mm |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Clamping range, max. | 6 mm² |
|---|---|
| Connection cross-section, stranded, max. | 6 mm² |
| Connection direction | top |
| Number of connections | 1 |
| Twin wire-end ferrules, max. | 1.5 mm² |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
