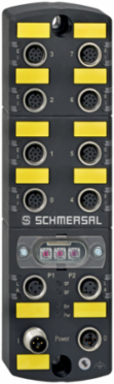

Schmersal 103015480 Safety Fieldbox for EthernetIP with Integrated Dual-Port Switch, IP66/IP67, 8 Devices, 24 VDC
- MPN: 103015480
- PPN: SCM-103015480
CAD
$2661.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Fieldbox for EthernetIP with Integrated Dual-Port Switch, IP66/IP67, 8 Devices, 24 VDC
Features
- Safety fieldbox for EthernetIP with CIP-Safety
- For connection of up to 8 safety switching devices
- Integrated dual-port switch
- Protection class IP66, IP67
Documentation & Downloads
Specifications
Key Specifications
- Length
- 222.8 mm
- Height
- 36.1 mm
Width63 mm
LED status display - LED 02
- LED status
- Input LED device port
- LED colour
- Yellow
LED positionI: 0 ... 7
Electrical data - Safety digital inputs
- Designation, Safety inputs
- X1 and X2
- Current consumption at 24 V
- 6 mA
- Test pulse duration, minimum
- 0.01 ms
- Test pulse interval, minimum
- 20 ms
- Classification ZVEI CB24I, Sink
- C1
Switching thresholds−3 V … 5 V (Low) | 13 V ... 30 V (High)
Permissible residual drive current1 mA
Test pulse duration, maximum1 ms
Test pulse interval, maximum120,000 ms
Classification ZVEI CB24I, SourceC1 | C2 | C3
LED status display - LED 06
- LED status
- BUS fault LED
- LED colour
- Red
LED positionBF": Module
Electrical data
- Current consumption
- 200 mA
- Operating current
- 10,000 mA
- Time to readiness, maximum
- 8,000 ms
- Reaction Time Safety Input, maximum
- 20 ms
Rated operating voltage24 VDC
Note (Electrical data, Fuse rating)External fuse protection required ≤ 10A slow blow when used to UL 61010.
Device Watchdog Time12 ms
Reaction Time Safety Output, maximum50 ms
Mechanical data - Dimensions
- Width
- 63 mm
Height36.1 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
LED status display - LED 08
- LED status
- Power-LED fieldbox
- LED colour
- Green
LED positionPwr": Module
LED status display - LED 05
- LED status
- System fault LED
- LED colour
- green/red
LED positionSF": Module
General data - Features
- Integral system diagnostics, general
- Yes
Electrical data - Test pulse output
- Designation, Test pulse outputs
- Y1 and Y2
- Voltage drop U
- 1 V
- Voltage, Utilisation category DC-12
- 24 VDC
- Y2 rated current at 24 V
- 10 mA
- Test pulse interval, typical
- 500 ms
- Classification ZVEI CB24I, Sink
- C1
Design of control elementsshort-circuit proof, p-type
Current leakage I0.5 mA
Y1 rated current at 24 V15 mA
Y2 rated current at 0 V30 mA
Test pulse duration, maximum1 ms
Classification ZVEI CB24I, SourceC1
General data
- Standards
- EN IEC 61131-1 | EN IEC 61131-2 | EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508
- Material of the identification label
- Plastic, Polyamide PA
- Material of electronic encapsulation
- Polyurethane 2K PU
Enclosure materialThermoplastic, Polyamide PA 6 GF
Material of viewing windowPolyamide PACM 12
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
- Category
- 4
- PFH value
- 1.70 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
- Response time of local safety input ⇒ Fieldbus, maximum
- 20 ms
- Performance Level, up to
- d
- Diagnostic Coverage (DC) Level
- 90 %
- PFD
- 2.00 x 10⁻²
- Response time of local safety input > Fieldbus, maximum
- 20 ms
- Category
- 3
- PFD
- 8.80 x 10⁻³
- Reaction time Fieldbus > local safety output
- 50 ms
- PFD
- 1.60 x 10⁻⁴
Performance Level, up toe
Diagnostic Coverage (DC) Level99 %
PFD1.50 x 10⁻⁴
Mission time20 Year(s)
NoticeThe SFB fulfils the requirements as PDDB (proximity switch with defined behaviour under fault conditions) according to EN 60947-5-3 in combination with magnetic sensors (2 NC contacts) up to PL e / SIL 3.
Category2
PFH value2.30 x 10⁻⁷ /h
Safety Integrity Level (SIL), suitable for applications in1
Test interval for error detection10 s
PFH value1.00 x 10⁻⁷ /h
Safety Integrity Level (SIL), suitable for applications in2
PFH value1.90 x 10⁻⁹ /h
Electrical data - Safety digital outputs
- Designation, Safety outputs
- DO
- Voltage drop U
- 2 V
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
- Note, Utilisation category DC-13
- Inductive load, maximum 400 mH
- Test pulse duration, maximum
- 1 ms
- Test pulse interval, maximum
- 500 ms
- Classification ZVEI CB24I, Sink
- C1
Design of control elementsshort-circuit proof, p-type
Leakage current I0.5 mA
Current, Utilisation category DC-120.8 A
Current, Utilisation category DC-130.8 A
Switching frequency, maximum1 Hz
Test pulse interval, minimum15 ms
Classification ZVEI CB24I, SourceC1
Other data
- Note (applications)
- Safe field box with decentralised I/Os
Ambient conditions
- Degree of protection
- IP67 | IP66
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, minimum
- 10 %
- Note (Relative humidity)
- non-condensing
- Restistance to shock
- 30 g / 11 ms
- Permissible installation altitude above sea level, maximum
- 2,000 m
Ambient temperature-25 ... +55 °C
Storage and transport temperature, maximum+70 °C
Relative humidity, maximum95 %
Resistance to vibrations10 … 150 Hz, amplitude 0.35 mm / 5 g
Protection classIII
Mechanical data - Connection technique
- Termination
- M12 Connector socket/connector
- Terminal Connector, Power I/O
- M12 POWER, 4-pole, T-coded
- Tightening torque of electrical connection, minimum
- 0.8 Nm
Terminal connector, Input/OutputX0 - X7: M12, 8-pole, A-coded
Terminal Connector, Field busM12, 4-pole, D-coded
Tightening torque of electrical connection, maximum1.5 Nm
Electrical data - Power supply external devices
- Designation, Power supply
- A1 and A2
- Rated operating current
- 800 mA
Rated operating voltage24 VDC
Internal electrical fuse1.5 A (Integrated automatic resettable fuse)
LED status display - LED 04
- LED status
- LED Activity Ethernet port
- LED colour
- Green
LED positionA: P1 + P2
Electrical data - Communication protocols
- Feldbus Protokoll
- EtherNet IP / CIP Safety
- Specification safety fieldbus
- V2.22
- Transfer rate
- 100 Mbit/s Full Duplex
- Integrated switch
- Dual Port, 100 Mbit/s
- Service interface
- WEB-Interface HTTP
Fieldbus specificationV1.27
Fieldbus propertiesDevice Level Ring (DLR)
AdressingDynamic Host Configuration Protocol (DHCP) / BootP
Fieldbus servicesLLDP
LED status display - LED 01
- LED status
- Error LED device port
- LED colour
- green/red
LED positionE: 0 ... 7
Mechanical data
- Mounting
- Screws
- Tightening torque of the fixing screws, maximum
- 3 Nm
- Tightening torque of the fastening screws for the viewing window, maximum
- 0.6 Nm
Type of the fixing screws2x M6
Type of the fixing screws, viewing window2x TX10 (Torx)
Approvals - Standards
- Certificates
- TÜV | cULus
LED status display - LED 03
- LED status
- LED Link Ethernet port
- LED colour
- Green
LED positionL: P1 + P2
Electrical data - Diagnostic inputs / FB-Interface
- Designation, Diagnostic inputs / FB-Interface
- DI
- Current consumption at 24V
- 12 mA
- Data transfer rate FB-Interface
- 19,2 kBaud
Switching thresholds−3 V … 5 V (Low) | 15 V … 30 V (High)
Input debounce filter10 ms
LED status display - LED 07
- LED status
- Fieldbox error LED
- LED colour
- green/red
LED positionErr": Module
Electrical data - Device Ports
- Bezeichnung, Geräteanschlüsse
- X0 ... X7
Cable length, device port30 m
