Weidmuller 1758320003 SFC 2/12 MC NE RT
- MPN: 1758320003
- PPN: WDM-1758320003
CAD
$0.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

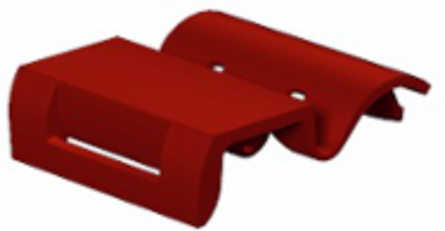

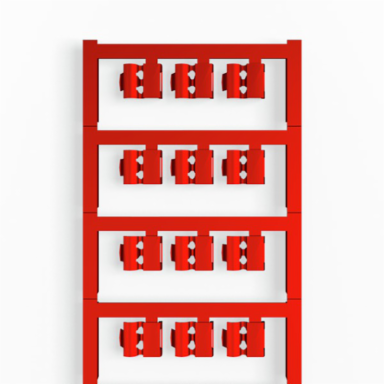

SlimFix Clip, Conductor and cable markers, 3 - 5 mm, 12 x 5.8 mm, red
Documentation & Downloads
Specifications
General Data
- Colour
- red
- Material
- Polyamide 66
- Operating temperature range
- -40...100 °C
- Size of labelling field
- 12 x 5.8 mm
- UL 94 flammability rating
- V-2
- compatible printer
- 1324380000
HalogenNo
Material colour according to resistance code2
Recommended industriesMachinery
Type of printingneutral
Width5.8 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 5.8 mm
- Height
- 12 mm
- Depth
- 7.6 mm
- Net weight
- 0.758 g
Width (inches)0.228 inch
Height (inches)0.472 inch
Depth (inches)0.299 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC44-12-17-08
Conductor And Cable Markers
- Conductor O.D.
- 3 - 5 mm
- Conductor O.D., min.
- 3 mm
- Conductor cross-section, min.
- 3 mm²
Conductor O.D., max.5 mm
Conductor cross-section, max.4 mm²
HalogenNo
