Weidmuller 1062080000 SFC 2.5/21 MC NE RT
- MPN: 1062080000
- PPN: WDM-1062080000
CAD
$0.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

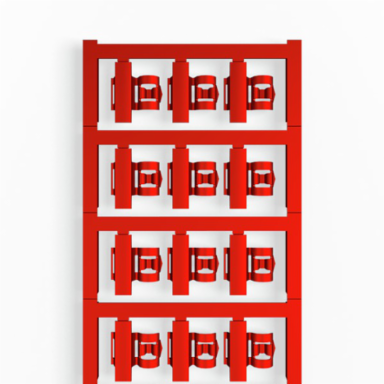

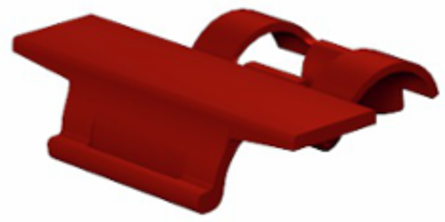

SlimFix Clip, Conductor and cable markers, 4 - 6 mm, 21 x 9.3 mm, red
Documentation & Downloads
Specifications
General Data
- Colour
- red
- Material
- Polyamide 66
- Operating temperature range
- -40...100 °C
- Size of labelling field
- 21 x 5.8 mm
- UL 94 flammability rating
- V-2
- compatible printer
- 1324380000
HalogenNo
Material colour according to resistance code2
Recommended industriesMachinery
Type of printingneutral
Width9.3 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 9.3 mm
- Height
- 21 mm
- Depth
- 9.1 mm
- Net weight
- 0.917 g
Width (inches)0.366 inch
Height (inches)0.827 inch
Depth (inches)0.358 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC39-12-14-00
Conductor And Cable Markers
- Conductor O.D.
- 4 - 6 mm
- Conductor O.D., min.
- 4 mm
- Conductor cross-section, min.
- 4 mm²
Conductor O.D., max.6 mm
Conductor cross-section, max.10 mm²
HalogenNo
