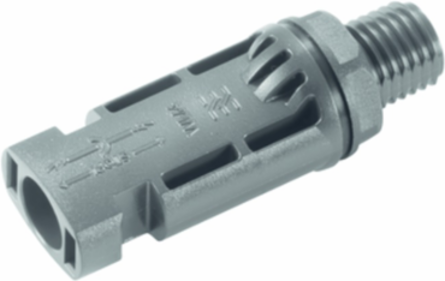

Weidmuller 1530640000 SFGH BOX WM4 C BT
- MPN: 1530640000
- PPN: WDM-1530640000
CAD
$4.17
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Photovoltaics, Plug-in connector, Pin
Documentation & Downloads
Specifications
Approvals
| Approvals | TUEV |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 7.7 g |
|---|
Classifications
| ETIM 6.0 | EC002928 |
|---|---|
| eClass 9.0 | 22-57-92-03 |
| eClass 10.0 | 27-44-01-07 |
| ETIM 7.0 | EC002928 |
|---|---|
| eClass 9.1 | 27-44-01-07 |
Technical Data
| Approvals | TÜV (DIN EN 50521) |
|---|---|
| Conductor cross-section, max. | 6 mm² |
| External thread | M 12 |
| Outer cable diameter, min. | 5.5 mm |
| Protection degree | IP65, IP67, IP2x open |
| Rated voltage | 1500 V DC (IEC) |
| Cable type | 2 Pfg1169/08.07, EN 50618:2014 |
|---|---|
| Conductor cross-section, min. | 4 mm² |
| Outer cable diameter, max. | 7 mm |
| Pollution severity | 2 |
| Rated current | 35 A |
Temperatures
| Continuous operating temp., min. | -40 °C |
|---|
| Continuous operating temp., max. | 85 °C |
|---|
