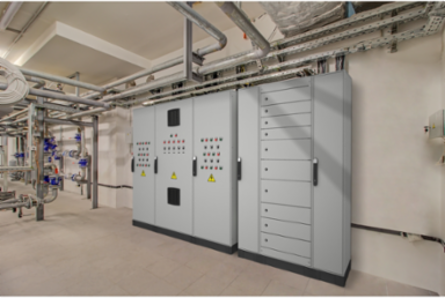

Schneider Electric NSYBLKHN123 Padlocking system, PanelSeT SFN, PanelSeT SM, for electrical enclosure, RAL9005
Schneider Electric NSYBLKHN123 Padlocking system, PanelSeT SFN, PanelSeT SM, for electrical enclosure, RAL9005
- MPN: NSYBLKHN123
- PPN: SCH-NSYBLKHN123
- UNSPSC: 46171523
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$136.88/ EA
Description
This padlock locking is a locking accessory that can be installed in all the handles of PanelSeT SFN and PanelSeT SM floor standing steel electrical enclosures. The supply includes one cut-out handle, a bolt for the padlock with a 7. 5 mm drill hole and a bolt fixing screw.
Features
- The handle design is both aesthetic and ergonomic, making it easier to open and close.
- Easy to install.
- Posibillity to change the opening direction of the door, right/left.
- Compatible with PanelSeT SFN and PanelSet SM.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 bolt, 1 bolt fixing screw, cut out handle
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.147234062
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.2 kg CO2 eq., 0.16718578
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 83.000 g
- Product Or Component Type
- padlocking device
- Range
- PanelSeT
- Sustainable Packaging
- No
- Accessory Separate Part Category2
- locking accessory
- Medium Desc
- Padlocking system, PanelSeT SFN, PanelSeT SM, for electrical enclosure, RAL9005
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.012325132, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.017449432, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2507020EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Mounting Supportdirect mounting on handle
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityYes
Total Lifecycle Carbon Footprint0.3 kg CO2 eq.
Accessory Separate Part Type2lock
Stocking FlagN
Pep CodeENVPEP2301018EN
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; UE-27
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; UE-27
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 0.344194406
- Environmental Disclosure
- ENVPEP2301018EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2301018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2507020EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- padlocking device
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- United States
