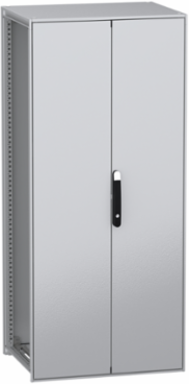

Schneider Electric NSYSFN188602D Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800x800x600mm, 2 doors, IP55
Schneider Electric NSYSFN188602D Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800x800x600mm, 2 doors, IP55
- MPN: NSYSFN188602D
- PPN: SCH-NSYSFN188602D
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3263.91/ EA
Description
Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800x800x600mm, 2 doors, IP55
Features
- Sustainable design that contains recycled steel manufactured with renewable energy to face environmental challenges.
- IEC and UL compliant making it sturdy, robust, and durable for maximum component protection.
- Available in mounted, kit, and customized versions to optimize your configurations coping with specific needs.
- Ergonomic design for convenience & time-saving operations.
- Large choice of dimensions & accessories to simplify mounting and installation of electrical equipment.
Specifications
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)

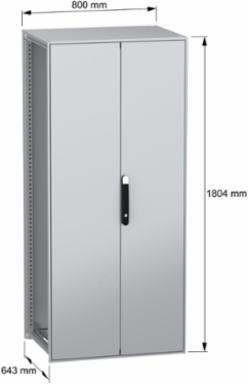

- Enclosure Nominal Width
- 800 mm
Enclosure Nominal Height1800 mm
Conformance Attributes
- Standards
- IEC 62208, UL, cUL
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition

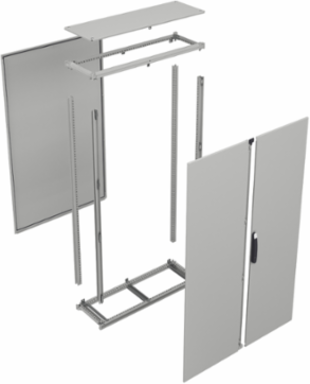

- 2 sliding rails, 4 mounting plate quick-fixing brackets, 1 structure right door, 1 rear panel, 1 roof, 2 door, 1 locking system with handle, 1 locking bar system 4 points right door, 1 locking bar system 2 points left door
- Material
- frame galvanised steel, uprights galvanised steel, door sheet steel, panels sheet steel, hinge zamak, handle polyamide 6 with 30 % fibre glass
- Structure Type
- formed from a single section, vertical uprights joined with top and bottom frames, perforated structure with a pitch of 25 mm, panels and doors built into the structure
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 219 kg CO2 eq., 219.0389812
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 249 kg CO2 eq., 248.7209983
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Device Application
- multi-purpose
- Enclosure Mounting
- floor-standing
- Lock Type

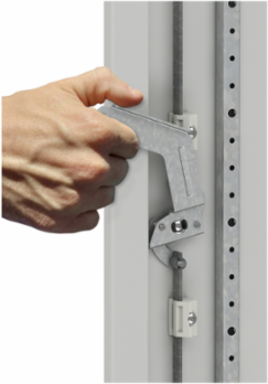

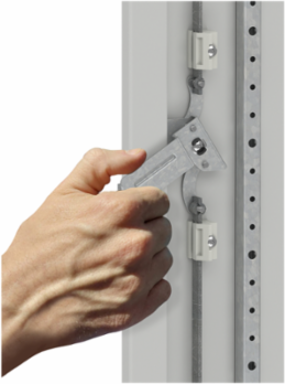

- 4 points lock, handle with 5 mm double bar insert front right door
- Mounting Plate Description
- without mounting plate
- Package Weight Lbs
- 96.700 kg
- Product Or Component Type
- suitable enclosure
- Returnability
- Yes
- Sustainable Packaging
- No
- Type Of Gland Plate
- without gland plate
- Stocking Flag
- Y
- Pep Code
- ENVPEP2301018EN
- Pep Verification Date
- 2023-07-31
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Product Name
- PanelSeT SFN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial

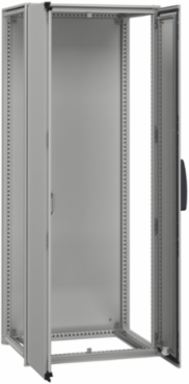

Door Opening Sideleft 120 °), right 120 °)
Removable Partsdoor by screws hinge, mounting plate by screws mounting plate bracket, rear panel by screws, roof by screws, mounting plate bracket by screws, sliding rail by screws
Carbon Footprint Of The Distribution Phase A418.33600414, 18 kg CO2 eq.
Carbon Footprint Of The Installation Phase A525.95938595, 26 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2507020EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Average Percentage Of Recycled Metal Content45 %
Door TypeSolid front
Energy Efficiency OptimizedFalse
Mechanical RobustnessIK protection
Number Of Doorsfront face 2
Product AvailabilityStock - Normally stocked in distribution facility
RangePanelSeT
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint512 kg CO2 eq.
Medium DescFloor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800x800x600mm, 2 doors, IP55
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; UE-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 512.0553696
- Environmental Disclosure
- ENVPEP2301018EN
- Nema Degree Of Protection
- NEMA 3R/12
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2301018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level45 %
Mercury FreeYes
Circularity ProfileENVEOLI2507020EN
IP Degree Of ProtectionIP55 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- suitable enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
