Weidmuller 1248760000 SFX 9/40 S MC NE WS
Weidmuller 1248760000 SFX 9/40 S MC NE WS
- MPN: 1248760000
- PPN: WDM-1248760000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$0.83/ EA
Description

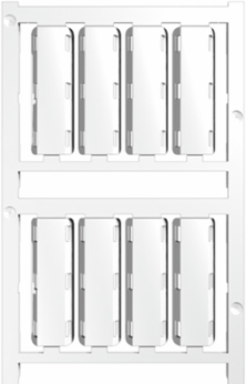

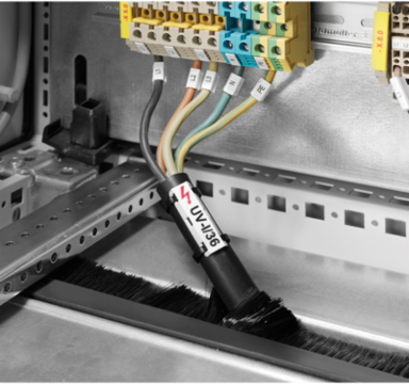

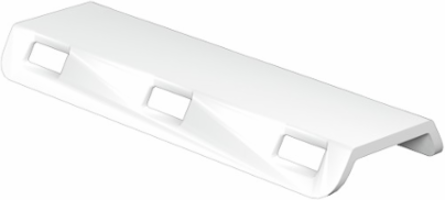

SlimFix X, Conductor and cable markers, 7 - 40 mm, 40 x 13.62 mm, white
Specifications
General Data
- Colour
- white
- Material
- Polyamide 66
- Operating temperature range
- -40...100 °C
- Size of labelling field
- 40 x 8.5 mm
- Version
- Installation with cable ties
- compatible printer
- 1324380000
HalogenNo
Material colour according to resistance code9
Recommended industriesTransportation, Machinery
UL 94 flammability ratingV-2
Width13.62 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 13.62 mm
- Height
- 40 mm
- Depth
- 1 mm
- Net weight
- 1.128 g
Width (inches)0.536 inch
Height (inches)1.575 inch
Depth (inches)0.039 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 7 - 40 mm
- Conductor O.D., min.
- 7 mm
- Conductor cross-section, min.
- 16 mm²
Conductor O.D., max.40 mm
Conductor cross-section, max.500 mm²
HalogenNo
