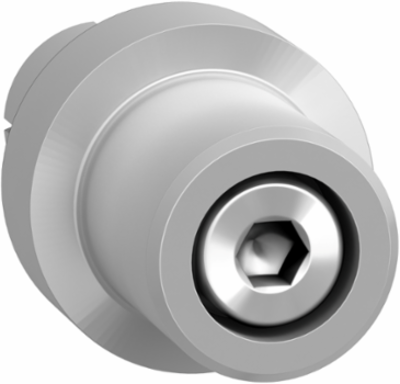

Schneider Electric VW33MF1S12A12 Shaft Extension 1 Piece for Lexium PAS/CAS, 0.012 kg, 230 N Max Radial Force

Shaft Extension 1 Piece for Lexium PAS/CAS, 0.012 kg, 230 N Max Radial Force
  • MPN: VW33MF1S12A12
  • PPN: SCH-VW33MF1S12A12

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$100.74/ EA

Description

Engineered for precision and reliability, this shaft extension from Schneider Electric is designed specifically for use with the Lexium PAS and CAS systems. Capable of handling a maximum radial force of 230 N, it offers robust performance in demanding applications within automation and motion control. Weighing only 0.012 kg, this extension provides a lightweight yet durable solution for enhancing mechanical configurations, making it a vital component for your engineering projects.

Specifications

Torque Value
7.7 N.m (68.15 lbf.in)
Inertia
0.002 kgcm²
Range Compatibility
Lexium PAS, Lexium CAS
Diameter D1
12 mm (0.47 in)
Screw Type
ISO 4762 M4
Range Of Product
Lexium linear motion
Accessory / Separate Part Category
maintenance accessories
Warranty
18 months
Maximum Radial Force230 N
Product CompatibilityPAS 41 linear axis 40 x 40 mm, CAS 41 linear axis 40 x 40 mm
Net Weight0.012 kg
Diameter D217 mm (0.67 in)
Product Or Component Typeshaft journal
Product Specific Applicationto connect an encoder and third-party application specific drive
ComplianceREACH SVHC Free, RoHS Compliant, Mercury Free, Toxic Heavy Metal Free, PVC Free
Country of OriginGermany
