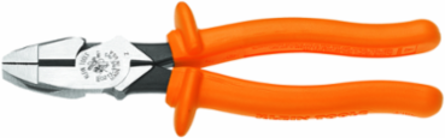

Klein Tools D213-9NE-INS 9 Inch New England Insulated Side Cutting Pliers, Forged Steel, IEC 60900, ASTM F1505
Klein Tools D213-9NE-INS 9 Inch New England Insulated Side Cutting Pliers, Forged Steel, IEC 60900, ASTM F1505
- MPN: D213-9NE-INS
- UPC: 092644700439
- PPN: KLT-D213-9NE-INS
- UNSPSC: 27112135
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$116.54/ EA
Description
These Klein Tools Side Cutting New England Insulated Pliers are insulated by two layers and pass both the IEC 60900 and ASTM F1505 standards. They are made of forged steel with induction-hardened knives for strength and durability. And they have high-leverage design which provides 46-percent more cutting and gripping power than other plier designs.
Features
- Individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated electrical pliers, and clearly marked with the official 1000-volt rating symbol

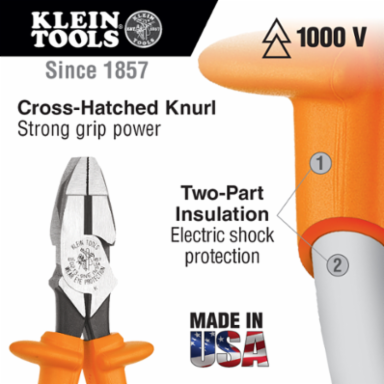

- Two layers of insulation provide protection against electric shock
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
- Flame retardant, impact-resistant, bright orange outer coating
- Induction-hardened cutting knives for long life
- Hot-riveted joint for smooth action and no handle wobble
- High-leverage design provides 46-percent greater cutting and gripping power than other plier designs
- Integral guards help prevent hand contact with conductive parts
- Forged steel for maximum durability
- Integral Guards Help Prevent Hand Contact With Conductive Parts
- Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated electrical pliers, and clearly marked with the official 1000-volt rating symbol
- Made in USA
- Pliers are individually tested to exceed the ASTM F1505-16(2021) and IEC 60900:2018 standards, for insulated electrical pliers, and clearly marked with the official 1000-volt rating symbol
- Precision machined knives cut cleanly and crisply even on fine stranded wire, mule tape and pull line
Specifications
Specifications
- Country of Origin
- United States
- Style Name
- Standard
- Heavy Duty
- No
- Bolt Thread Holding
- No
- Item
- Side-Cutting
- Knife Length
- 0.781" (2 cm)
- Jaw Thickness
- 0.62" (1.6 cm)
- Cut Style
- Side-Cutting
- Tether Capable
- No
- Handle Color
- Orange
- Overall Width
- 2.49" (6.3 cm)
- Jaw Capacity
- 1.375" (3.5 cm)
- Material
- Induction Hardened Steel
- Nose Type
- New England
- Standards
- IEC 60900 and ASTM F1505
- Screw Shearing
- No
- Height
- 0.6250 in
- Depth
- 9.6250 in
StandardYes
Nominal Length9"
Connector CrimpingNo
Fish Tape PullingNo
Overall Length9.68" (24.6 cm)
Cutting Knives1
InsulatedYes
Handle Length5.73" (14.6 cm)
Joint TypeHot-Riveted
Jaw Length1.91" (4.9 cm)
Handle Finish2-Layer Insulation
Jaw Width1.25" (3.2 cm)
TypeSide Cutting Pliers
ApplicationACSR, Screws, Nails and Most Hardened Wires
Strips and Cuts AWG SolidNo
Strips and Cuts AWG StrandedNo
Width3.1000 in
Weight1.2500 lbs
