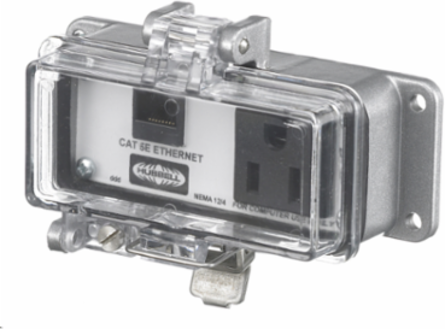

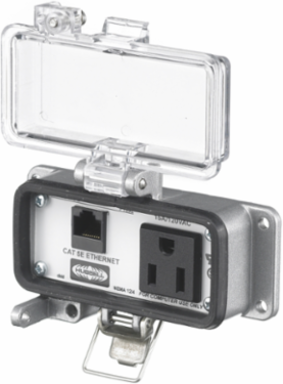

Hubbell Wiring Device-Kellems P155E2 Panel Safe Signal & Control, 2 Cat5e Ports, 1 15A 125V Receptacle, NEMA 12/4 Enclosure
- MPN: P155E2
- UPC: 783585320786
- PPN: HBL-P155E2
- UNSPSC: 32151903
CAD
$366.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PANEL-SAFE® Control Panel Interface, 2 Cat 5e Ethernet, 15A/125V AC Reeptacle, UL Type 4 Enclosure
Features
- Protective clear cover
- Overcurrent protection
- Finger-safe contacts
- Stainless steel snap latch
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Industry Standard(s) | cULus |
| Application | PANEL-SAFE® UL type 4 2 -CAT 5E, 15A/120VAC |
| Color | Gray, Clear |
| Enclosure | UL Type 4 |
| Special Features | Standard Product |
| Width | 2.5 in |
| Engineering Drawing 1 Display Text | P155E2 AutoCAD Drawing |
| General Literature Asset 2 Display Text | Food Processing Guide |
| Enclosure Type | UL Type 4 |
| Description - Invoice | NEMA 12/4 2 -CAT 5E, 15A/120VAC |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 9.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 20 EA |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 15 A |
|---|---|
| Performance | Electrical - Data Jack - Cat. 5E;Electrical - In-Cabinet Receptacle - 15A;Environmental - Enclosure - UL Type 4 |
| Cable Entry | Plug-In |
| Depth | 2.5 in |
| Height | 5.5 in |
| Standard | cULus |
| Weight | 0.45 lb. |
| General Literature Asset 1 Display Text | Safety Product Guide |
| General Literature Asset 3 Display Text | Pulp & Paper Solutions |
| Class Code | A28 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A28A300 |
| Material | Polycarbonate, UV Rated, V-0 Flame Rated |
| BOX SIZE | 6.600x2.900x14.200 (in) |
| Carton - Number of Sub Packs | 20 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585320786 |
| Each - Pack Description | Each |
| NAICS Code | 335931A107 |
Certifications
| EU RoHS Indicator | Yes |
|---|
