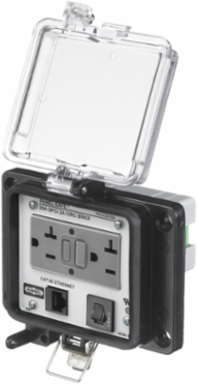

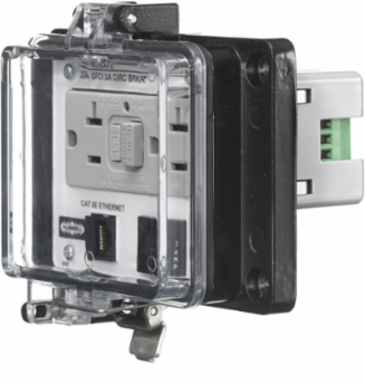

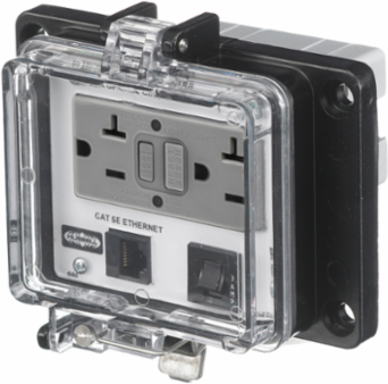

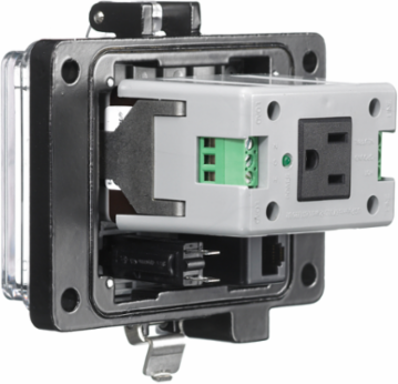

Hubbell Wiring Device-Kellems PR4X205EB NEMA 4X GFCI Receptacle, 15A 125V, Cat5e, 3A Circuit Breaker
- MPN: PR4X205EB
- UPC: 783585524818
- PPN: HBL-PR4X205EB
- UNSPSC: 32151903
CAD
$595.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Signal and Control Products, Industrial Ethernet, NEMA 4X Enclosure, Cat5e, 15A 125V, GFCI Receptacle, with 3A Circuit Breaker
Features
- Protective clear cover
- Overcurrent protection
- Finger-safe contacts
- Stainless steel snap latch
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Safety Product Guide
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Current / Amperage Rating
- 15 A
- Performance
- Electrical - Circuit Breaker - 3A;Electrical - Data Jack - Cat. 5e;Electrical - GFCI - Conforms to UL 943 2006 requirement;Electrical - In-Cabinet Receptacle - GFCI protected;Environmental - Enclosure - NEMA Type 4, 12 and NEMA Type 4X
- Cable Entry
- Plug-In
- Depth
- 3.2 in
- Height
- 5.3 in
- Standard
- CSA Certified;UL Recognized
- Enclosure Type
- NEMA 4X
- Description - Invoice
- IE, NEMA 4X,CAT5E,20A GFCI,3A CIRC BRK
- Harmonization Code
- 8537109999
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 32.55 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A107
General Literature Asset 2 Display TextFood Processing Guide
Country of OriginUnited States
Industry Standard(s)CSA Certified;UL Recognized
Standards - RoHS Compliance StatusCM
ColorGray, Clear
EnclosureNEMA 4X
Special FeaturesStandard Product
Width3.4 in
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
MaterialComposite
BOX SIZE12.800x18.600x17.100 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack783585524818
Case Weight25.600 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
