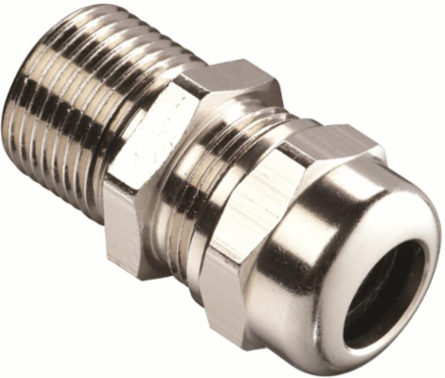

Kopex-ex EXN05ALC2K Single Compression Cable Gland
- MPN: EXN05ALC2K
- UPC: 078621019947
- PPN: T-B-EXN05ALC2K
CAD
$37.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single Compression Cable Gland, 3/4 Inch NPT Thread, For Use with Non-Armoured Cable, Flameproof Ex d and Increased Safety Ex e, IP66-68 Rating, Length 50mm, Cable Range 14 to 20mm, Kit with Locknut, Shroud, Earth Tag, and Washer, Nickel Plated Brass
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC000441 Cable screw gland
- Nominal thread size inch/gas pipe thread
- 3/4 inch
- Hexagon angular dimension
- 39mm
- Material
- Metal
- Surface protection
- Nickel-plated
- Glass-fibre reinforced
- N
- Shock resistant
- N
- Bend radius protection/trumpet flare
- N
- Model
- Straight
- Strain relief
- N
- Explosion-tested version
- Y
- For Ex-Zone dust
- None
Thread typeNPT
Thread length16mm
Suitable for cable diameter14.0-20.0mm
Material qualityBrass
Halogen freeN
Degree of protection (IP)IP68
ColourNatural colour
With locknutY
Flat cable couplingN
Operating temperature-40-+80°C
For Ex-zone gasNone
EMC-versionN
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 70
- Weight Uom
- 0.35 lbs. Each
Inner Dimensions (inches).39x5.71x5.91
Outer Dimensions (inches)7.87x15.75x11.02
North American Specifications (UNSPSC)
- UNSPSC
- 39121431 Cable gland connector
- Brand Name
- Kopex
- Special Features
- Kit Comes with Locknut, Shroud, Earth Tag, and Washer
- Standard
- UL Listed, Approved to EN60079-0, 60079-1, 60079-7, 60079-31
- Conductor Range
- 14 to 20 Millimeters
- Finish
- Nickel Plated
- Insulation
- IP66-68 Rating
- Environmental Conditions
- Flameproof Ex d and Increased Safety Ex e
IGCC4601 Cable gland connector
TypeSingle Compression Cable Gland
ApplicationFor Use with Unarmoured Cable to Provide Secure Cable Connections Through Knockouts and Threaded Entries
Size3/4 Inch NPT
MaterialBrass
ColorMetallic
Temperature Rating-40 to 80 Degrees C
