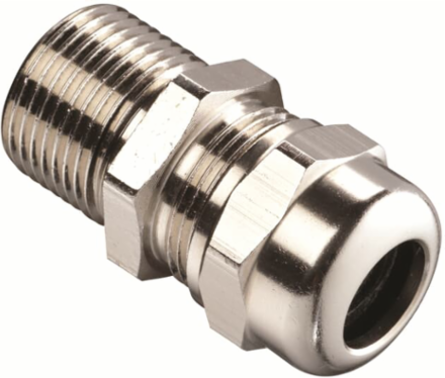

Kopex-ex EXN12AMC2K Single Compression Cable Gland

MPN: EXN12AMC2K
PPN: T-B-EXN12AMC2K

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$471.48/ EA

Qty:

Loading add to cart quantity...

Description

Single Compression Cable Gland, 4 Inch NPT Thread, For Use with Non-Armoured Cable, Flameproof Ex d and Increased Safety Ex e, IP66-68 Rating, Length 77mm, Cable Range 85 to 95mm, Kit with Locknut, Shroud, Earth Tag, and Washer, Nickel Plated Brass

Specifications

European Specifications (ETIM)

ETIM: EC000441 Cable screw gland

Nominal thread size inch/gas pipe thread: 4 inch

Hexagon angular dimension: 129mm

Material: Metal

Surface protection: Nickel-plated

Glass-fibre reinforced: N

Shock resistant: N

Bend radius protection/trumpet flare: N

Model: Straight

Strain relief: N

Explosion-tested version: Y

For Ex-Zone dust: None

Thread typeNPT

Thread length21mm

Suitable for cable diameter85.0-95.0mm

Material qualityBrass

Halogen freeN

Degree of protection (IP)IP68

ColourNatural colour

With locknutY

Flat cable couplingN

Operating temperature-40-+80°C

For Ex-zone gasNone

EMC-versionN

North American Specifications (UNSPSC)

UNSPSC: 39121431 Cable gland connector

Brand Name: Kopex

Special Features: Kit Comes with Locknut, Shroud, Earth Tag, and Washer

Standard: UL Listed, Approved to EN60079-0, 60079-1, 60079-7, 60079-31

Conductor Range: 85 to 95 Millimeters

Finish: Nickel Plated

Insulation: IP66-68 Rating

Environmental Conditions: Flameproof Ex d and Increased Safety Ex e

IGCC4601 Cable gland connector

TypeSingle Compression Cable Gland

ApplicationFor Use with Unarmoured Cable to Provide Secure Cable Connections Through Knockouts and Threaded Entries

Size4 Inch NPT

MaterialBrass

ColorMetallic

Temperature Rating-40 to 80 Degrees C

Packaging

Outer Quantity: 5

Weight Uom: 2.9 lbs. Each

Outer Dimensions (inches)15.75x3.94x3.94
