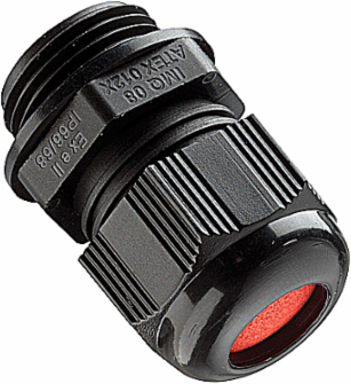

Kopex-ex EXCGM20ML Single Compression Cable Gland

MPN: EXCGM20ML
UPC: 786210194097
PPN: T-B-EXCGM20ML

$4.25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Single Compresion Cable Gland, M20 Metric Thread, Increased Safety Ex e and Intrinsic Safety Ex i, Cable Range 10 to 14mm, Thread Length 15mm, Nylon, Black

Specifications

Packaging

Inner Quantity	10
Outer Quantity	1000
Weight Uom	0.22 lbs. Each

Inner Dimensions (inches)	15x20x0
Outer Dimensions (inches)	60x40x30

European Specifications (ETIM)

ETIM	EC000441 Cable screw gland
Nominal thread size metric/PG	20
Thread length	15mm
Suitable for cable diameter	10.0-14.0mm
Material quality	Polyamide (PA)
Halogen free	N
Degree of protection (IP)	IP68
Colour	Black
With locknut	N
Flat cable coupling	N
Operating temperature	-40-+80°C
For Ex-zone gas	None
EMC-version	N

Thread type	Metric
Pitch thread	1.5mm
Hexagon angular dimension	27mm
Material	Plastic
Surface protection	Untreated
Glass-fibre reinforced	N
Shock resistant	N
Bend radius protection/trumpet flare	N
Model	Straight
Strain relief	N
Explosion-tested version	Y
For Ex-Zone dust	None

North American Specifications (UNSPSC)

UNSPSC	39121431 Cable gland connector
Brand Name	Kopex
Application	Provide Secure Cable Connections Through Knockouts and Threaded Entries
Size	M20
Material	Nylon
Temperature Rating	-20 to 80 Degrees C

IGCC	4601 Cable gland connector
Type	Single Compression Cable Gland
Standard	Approved to EN60079-0, 60079-7, 60079-11, 60079-31
Conductor Range	10 to 14 Millimeters
Color	Black
Environmental Conditions	Incread Safety Ex e and Intrinsic Safety Ex i
