Kopex-ex EXCGM63S Single Compression Cable Gland
- MPN: EXCGM63S
- UPC: 786210194219
- PPN: T-B-EXCGM63S
CAD
$30.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

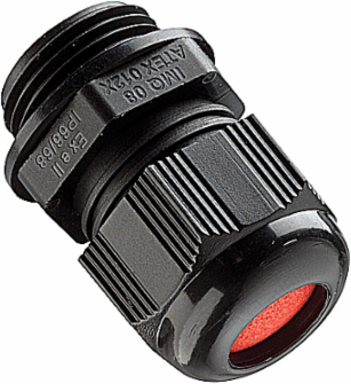

Single Compresion Cable Gland, M63 Metric Thread, Increased Safety Ex e and Intrinsic Safety Ex i, Cable Range 34 to 44mm, Thread Length 18mm, Nylon, Black
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC000441 Cable screw gland
- Nominal thread size metric/PG
- 63
- Thread length
- 18mm
- Suitable for cable diameter
- 34.0-44.0mm
- Material quality
- Polyamide (PA)
- Halogen free
- N
- Degree of protection (IP)
- IP68
- Colour
- Black
- With locknut
- N
- Flat cable coupling
- N
- Operating temperature
- -40-+80°C
- For Ex-zone gas
- None
- EMC-version
- N
Thread typeMetric
Pitch thread1.5mm
Hexagon angular dimension65mm
MaterialPlastic
Surface protectionUntreated
Glass-fibre reinforcedN
Shock resistantN
Bend radius protection/trumpet flareN
ModelStraight
Strain reliefN
Explosion-tested versionY
For Ex-Zone dustNone
North American Specifications (UNSPSC)
- UNSPSC
- 39121431 Cable gland connector
- Brand Name
- Kopex
- Application
- Provide Secure Cable Connections Through Knockouts and Threaded Entries
- Size
- M63
- Material
- Nylon
- Temperature Rating
- -20 to 80 Degrees C
IGCC4601 Cable gland connector
TypeSingle Compression Cable Gland
StandardApproved to EN60079-0, 60079-7, 60079-11, 60079-31
Conductor Range34 to 44 Millimeters
ColorBlack
Environmental ConditionsIncread Safety Ex e and Intrinsic Safety Ex i
Packaging
- Inner Quantity
- 5
- Outer Quantity
- 100
- Weight Uom
- 0.22 lbs. Each
Inner Dimensions (inches)9.84x9.45x13.78
Outer Dimensions (inches)11.02x22.05x14.57
