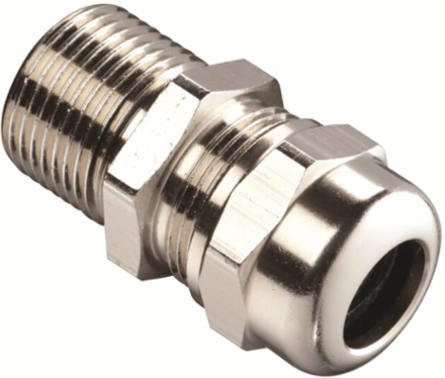

Kopex-ex EXN04AMC2K Single Compression Cable Gland

MPN: EXN04AMC2K
UPC: 786210199436
PPN: T-B-EXN04AMC2K

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$29.87/ EA

Qty:

Loading add to cart quantity...

Description

Single Compression Cable Gland, 1/2 Inch NPT Thread, For Use with Non-Armoured Cable, Flameproof Ex d and Increased Safety Ex e, IP66-68 Rating, Length 40mm, Cable Range 4 to 12mm, Kit with Locknut, Shroud, Earth Tag, and Washer, Nickel Plated Brass

Specifications

European Specifications (ETIM)

ETIM: EC000441 Cable screw gland

Nominal thread size inch/gas pipe thread: 1/2 inch

Hexagon angular dimension: 24.5mm

Material: Metal

Surface protection: Nickel-plated

Glass-fibre reinforced: N

Shock resistant: N

Bend radius protection/trumpet flare: N

Model: Straight

Strain relief: N

Explosion-tested version: Y

For Ex-Zone dust: None

Thread typeNPT

Thread length16mm

Suitable for cable diameter4.0-12.0mm

Material qualityBrass

Halogen freeN

Degree of protection (IP)IP68

ColourNatural colour

With locknutY

Flat cable couplingN

Operating temperature-40-+80°C

For Ex-zone gasNone

EMC-versionN

North American Specifications (UNSPSC)

UNSPSC: 39121431 Cable gland connector

Brand Name: Kopex

Special Features: Kit Comes with Locknut, Shroud, Earth Tag, and Washer

Standard: UL Listed, Approved to EN60079-0, 60079-1, 60079-7, 60079-31

Conductor Range: 4 to 12 Millimeters

Finish: Nickel Plated

Insulation: IP66-68 Rating

Environmental Conditions: Flameproof Ex d and Increased Safety Ex e

IGCC4601 Cable gland connector

TypeSingle Compression Cable Gland

ApplicationFor Use with Unarmoured Cable to Provide Secure Cable Connections Through Knockouts and Threaded Entries

Size1/2 Inch NPT

MaterialBrass

ColorMetallic

Temperature Rating-40 to 80 Degrees C

Packaging

Inner Quantity: 1

Outer Quantity: 100

Weight Uom: 0.18 lbs. Each

Inner Dimensions (inches).39x5.71x5.91

Outer Dimensions (inches)7.87x15.75x11.02
