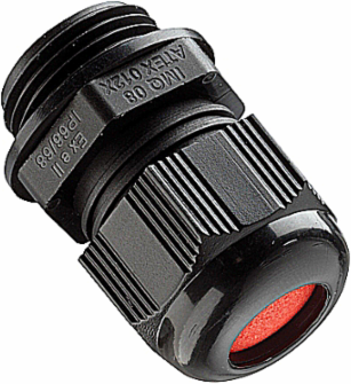

Kopex-ex EXCGM40M Single Compression Cable Gland

MPN: EXCGM40M
UPC: 786210194172
PPN: T-B-EXCGM40M

$53.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Single Compresion Cable Gland, M40 Metric Thread, Increased Safety Ex e and Intrinsic Safety Ex i, Cable Range 22 to 32mm, Thread Length 18mm, Nylon, Black

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121431 Cable gland connector
Brand Name	Kopex
Application	Provide Secure Cable Connections Through Knockouts and Threaded Entries
Size	M40
Material	Nylon
Temperature Rating	-20 to 80 Degrees C

IGCC	4601 Cable gland connector
Type	Single Compression Cable Gland
Standard	Approved to EN60079-0, 60079-7, 60079-11, 60079-31
Conductor Range	22 to 32 Millimeters
Color	Black
Environmental Conditions	Incread Safety Ex e and Intrinsic Safety Ex i

Packaging

Inner Quantity	5
Outer Quantity	200
Weight Uom	0.22 lbs. Each

Inner Dimensions (inches)	9.84x8.27x11.81
Outer Dimensions (inches)	11.02x22.05x14.57

European Specifications (ETIM)

ETIM	EC000441 Cable screw gland
Nominal thread size metric/PG	40
Thread length	18mm
Suitable for cable diameter	22.0-32.0mm
Material quality	Polyamide (PA)
Halogen free	N
Degree of protection (IP)	IP68
Colour	Black
With locknut	N
Flat cable coupling	N
Operating temperature	-40-+80°C
For Ex-zone gas	None
EMC-version	N

Thread type	Metric
Pitch thread	1.5mm
Hexagon angular dimension	53mm
Material	Plastic
Surface protection	Untreated
Glass-fibre reinforced	N
Shock resistant	N
Bend radius protection/trumpet flare	N
Model	Straight
Strain relief	N
Explosion-tested version	Y
For Ex-Zone dust	None
