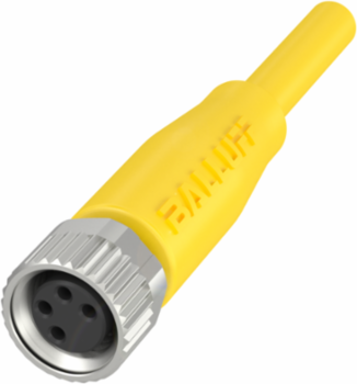

Single-Ended Cordset, 15 Meter, M8 4-Pin, IP67/IP69K
Balluff

Balluff BCC M314-0000-10-003-VX44T2-150 Single-Ended Cordset, 15 Meter, M8 4-Pin, IP67/IP69K

  • MPN: BCC M314-0000-10-003-VX44T2-150
  • PPN: BAL-BCC0A79

CAD

$52.84

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Designed for robust performance in demanding environments, this single-ended cordset features a durable M8x1-Female connector with a straight, 4-pin A-coded configuration. With a generous length of 15 meters, it is constructed from high-quality PVC, ensuring compatibility with drag chains while maintaining flexibility for various routing needs. This cordset is built to withstand extreme temperatures, with a fixed routing range of -40 to 105 °C and a flexible routing range of -5 to 105 °C, making it suitable for a wide range of applications. Additionally, it boasts an impressive IP67 and IP69K rating, providing superior protection against dust and water ingress, and is certified for compliance with CE, cULus, EAC, and WEEE standards, ensuring reliability and safety in your operations.

Documentation & Downloads

Specifications

Additional

Connection
M8x1-Female, straight, 4-pin, A-coded
Operating voltage
60 V DC / 60 V AC
Cable
PVC yellow, Drag chain compatible
Cable temperature, flexible routing
-5 to 105 0C
Approval/Conformity
CE, cULus, EAC, WEEE
Material Contacts
Bronze
Material Grip
PUR
Tightening Torque Pigtail
0.4 Nm
Cable Diameter
5.00 mm b10.15 mm
Bending Radius Min Flexible Cable
10 x Diameter
Traverse Speed Max Drag Chain
200 m/min
Vertical Travel Permitted Drag Chain
2 m
Switching Output
Complementary
Number of conductors4
Cable Length15.00 m
Cable temperature, fixed routing-40 to 105 0C
IP ratingIP67, IP69K
Material Contact CarrierPUR
Material Cover NutDie-cast zinc or nickel plated brass
Conductor Cross-Section22 AWG
Rated Current4.0 A
Bending Radius Min Fixed Cable5 x Diameter
Cable Bending Cycles Min2 million
Horizontal Travel Permitted Drag Chain5 m
Acceleration Max Drag Chain5 m/sb2
