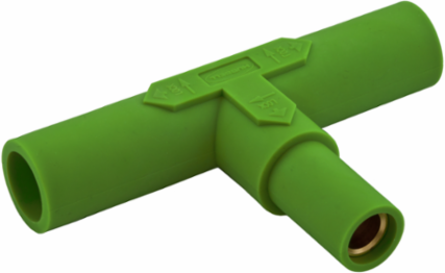

Bryant HBL15PTGN 150 Amp Green Single Pole Paralleling Tee, 1-Pole, 600V AC/DC
- MPN: HBL15PTGN
- UPC: 783585458595
- PPN: HBL-HBL15PTGN
- UNSPSC: 39121421
CAD
$119.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single Pole Products, Paralleling Tee, 150 Amp Series, Green
Features
- Paralleling Tee
- 150 Amp Series
- Green
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.800 in
- Amperage Rating
- 150 A
- Color
- Green
- Insulation
- Insulated Body
- Number of Conductors
- 1 Conductor
- Special Features
- Standard Product
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating Description
- 600V AC/DC
- Display Size
- Standard
- Number Of Conductors
- 1 Conductor
- Style
- Paralleling Tee Femal-Male-Male
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Cord Mounted
- Material
- Brass and Non-Metallic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.400 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
Current / Amperage Rating150 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
ApplicationTemporary Electrical Power
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingNon-NEMA
Number of Poles1-Pole
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
TypeTees and 3-Fers
ConnectivityPlug-In
Nema RatingNon-NEMA
Number Of Poles1-Pole
Description - InvoiceSINGLE POLE SER, 15 PARALLELING TEE, GN
Harmonization Code8536698000
MSDS FlagNo
Current Rating150 A
Series15 Series
BOX SIZE6.900x11.200x5.700 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00783585458595
Case Weight6.850 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
