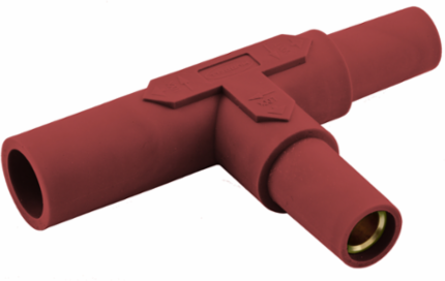

Bryant HBL15TR Single Pole Tapping Tee, 150 Amp, Red, 600V AC/DC, 1-Pole
- MPN: HBL15TR
- UPC: 783585458656
- PPN: HBL-HBL15TR
- UNSPSC: 39121421
CAD
$119.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single Pole Products, Tapping Tee, 150 Amp Series, Red
Features
- Tapping Tee
- 150 Amp Series
- Red
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.600 in
- Amperage Rating
- 150 A
- Color
- Red
- Insulation
- Insulated Body
- Number of Conductors
- 1 Conductor
- Special Features
- Standard Product
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating Description
- 600V AC/DC
- Display Size
- Standard
- Number Of Conductors
- 1 Conductor
- Style
- Tapping Tee Female-Female-Male
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Cord Mounted
- Material
- Brass and Non-Metallic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.900 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
Current / Amperage Rating150 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
ApplicationTemporary Electrical Power
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingNon-NEMA
Number of Poles1-Pole
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
TypeTees and 3-Fers
ConnectivityPlug-In
Nema RatingNon-NEMA
Number Of Poles1-Pole
Description - InvoiceSINGLE POLE SER, 15 TAPPING TEE, RED
Harmonization Code8536698000
MSDS FlagNo
Current Rating150 A
Series15 Series
BOX SIZE6.900x11.200x5.400 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00783585458656
Case Weight9.200 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
