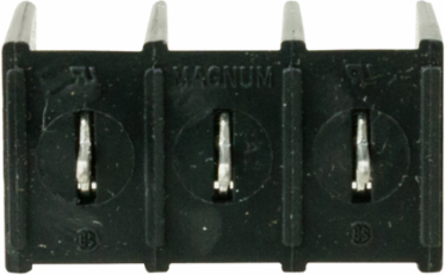

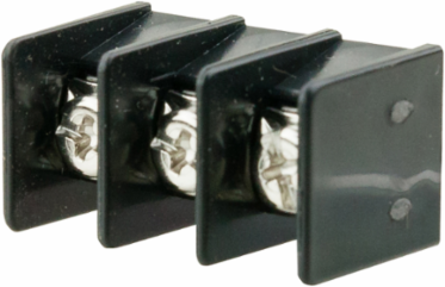

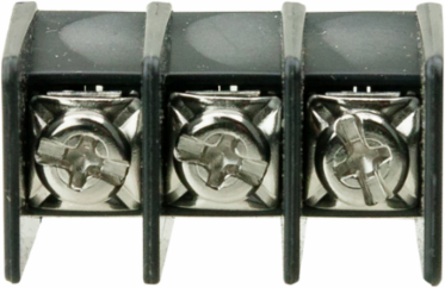

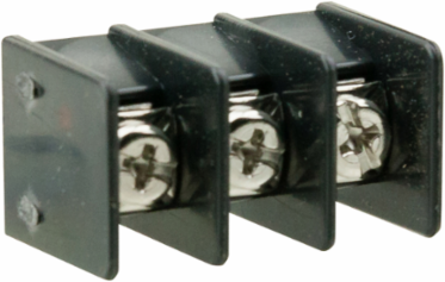

Bussmann A203510 Single Row Terminal Block, 10-Pole, 1.93 Inch Length, 300V Voltage Rating
- MPN: A203510
- UPC: 051712333153
- PPN: BUS-A203510
CAD
$8.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Single Row Terminal Block, 10-Pole, 1.93 Inch Length, 300V Voltage Rating
Documentation & Downloads
Specifications
Key Specifications
| Height | .001 IN |
|---|---|
| Width | .65 IN |
| Application | industrial |
| Special Features | Break down voltage 3400V |
| Voltage Rating | 300V |
| Operating Temperature | -40° to 105°C |
| Torque Rating | 9 lb-in |
| Screw Options | Standard screw |
| Color | Black |
| Terminal Material | Non feed-thru |
| Length | 1.93 IN |
|---|---|
| Weight | .1 LB |
| Mounting | Closed base, mount end |
| Type | Standard barrier |
| Number Of Poles | Ten-pole |
| Wire Size | #22-12 AWG Cu |
| Center Spacing | 0.375 in |
| Material | Molded thermoplastic base, zinc plated steel screw |
| Connection | #6-32 TPI screw, hand wired |
| Notes | Base/End Note: 5 Style only avaliable with 03 terminals |
