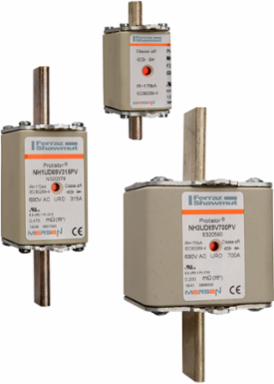

Mersen P320265 Protistor® NH0 aR 125A 690V Fast Acting Fuse with 722 A²s I²t
Mersen P320265 Protistor® NH0 aR 125A 690V Fast Acting Fuse with 722 A²s I²t
- MPN: P320265
- UPC: 3605340358391
- PPN: FER-P320265
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$494.18/ EA
Description
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These NH style fuse-links are defined as per DIN 43620/00 for a worldwide acceptance into NH modular system fuse-holders, fuse switch disconnectors for direct installation. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Specifications
- Rated voltage AC UL
- 700 V
- Ampere Rating
- 125 A
- AC or DC
- AC
- Fuse Size
- NH0
- Clearing I2t At Rated Voltage
- 3890 A²s
- AC Max I.R./Breaking Capacity: I1
- 170 kA
- Indication System Type
- Double indicator
- Connection/Terminal Type
- Plain Blades
- Power Dissipation at Rated Current Value
- 36.1 W
- Length
- 4.92 in
- Weight
- 0.595 lb
Rated voltage AC IEC690 V
ROHS CompliantYes
Speed/CharacteristicaR
MountingClip
Melting I2t722 A²s
Indication SystemYes
Connection/Terminal MaterialBrass
Body/Insulating MaterialCeramic
Width1.18 in
Height2.4 in
