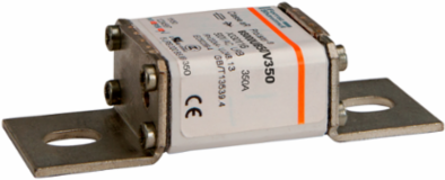

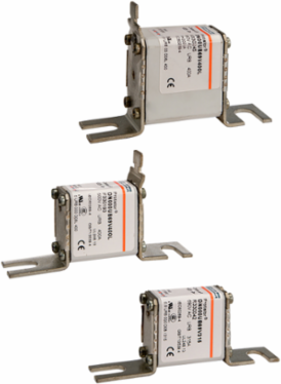

Mersen X330116 Square Body High-Speed Fuse Protistor® Size NH 000 aR 500VAC IEC 350A L Brackets
- MPN: X330116
- PPN: FER-X330116
CAD
$336.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The 690V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for small power conversion equipment. These ultra-fast acting aR fuses have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Key Specifications
- Rated voltage AC UL
- 500 V
- Rated voltage AC IEC
- 500 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- aR
- Mounting
- Bolted
- Melting I2t
- 22400 A²s
- Connection/Terminal Material
- Tin-Plated Copper
- Body/Insulating Material
- Ceramic
- Width
- 1.42 in
- Height
- 0.89 in
Rated voltage DC UL320 V
Ampere Rating350 A
AC or DCAC
Fuse SizeNH000
Clearing I2t At Rated Voltage110000 A²s
AC Max I.R./Breaking Capacity: I1120 kA
Connection/Terminal TypeL Brackets
Power Dissipation at Rated Current Value58 W
Length3.7 in
Weight0.311 lb
