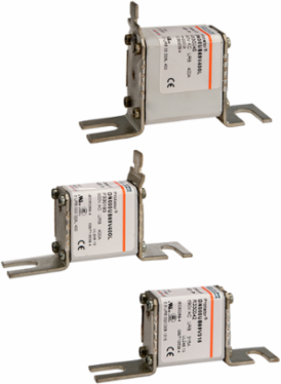

Mersen N330039 Protistor® NH000 Fuse, 160 A, 690 V, Ultra Fast Acting, DIN Type
Mersen N330039 Protistor® NH000 Fuse, 160 A, 690 V, Ultra Fast Acting, DIN Type
- MPN: N330039
- UPC: 3605340361094
- PPN: FER-N330039
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$187.20/ EA
Description
The 690V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for small power conversion equipment. These ultra-fast acting aR fuses have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Specifications
- Rated voltage AC UL
- 690 V
- Rated voltage AC IEC
- 690 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- aR
- Mounting
- Bolted
- Melting I2t
- 2680 A²s
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- Ceramic
- Width
- 0.79 in
- Height
- 1.52 in
Rated voltage DC UL500 V
Ampere Rating160 A
AC or DCAC/DC
Fuse SizeNH000
Clearing I2t At Rated Voltage16000 A²s
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeDIN 80 Blades
Power Dissipation at Rated Current Value31 W
Length3.94 in
Weight0.291 lb
