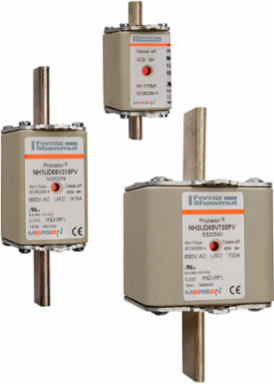

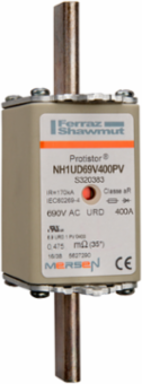

Mersen S320383 Square Body High-Speed Fuse Protistor® NH Size 1 aR 690VAC IEC 700VAC UL 400A With Double indicator Plain Blades
Mersen S320383 Square Body High-Speed Fuse Protistor® NH Size 1 aR 690VAC IEC 700VAC UL 400A With Double indicator Plain Blades
- MPN: S320383
- UPC: 3605340358476
- PPN: FER-S320383
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$744.69/ EA
Description
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These NH style fuse-links are defined as per DIN 43620/00 for a worldwide acceptance into NH modular system fuse-holders, fuse switch disconnectors for direct installation. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Specifications
- Rated voltage AC UL
- 700 V
- Ampere Rating
- 400 A
- AC or DC
- AC
- Fuse Size
- NH1
- Clearing I2t At Rated Voltage
- 105000 A²s
- AC Max I.R./Breaking Capacity: I1
- 170 kA
- Indication System Type
- Double indicator
- Connection/Terminal Type
- Plain Blades
- Power Dissipation at Rated Current Value
- 97 W
- Length
- 5.31 in
- Weight
- 0.926 lb
Rated voltage AC IEC690 V
ROHS CompliantYes
Speed/CharacteristicaR
MountingClip
Melting I2t19500 A²s
Indication SystemYes
Connection/Terminal MaterialBrass
Body/Insulating MaterialCeramic
Width1.57 in
Height2.52 in
