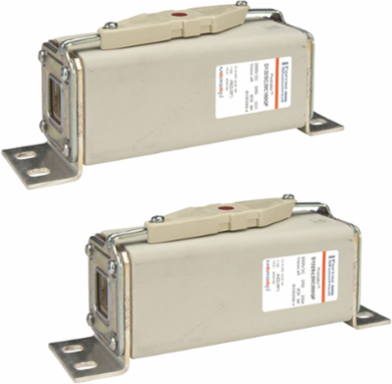

Mersen S079458 Protistor 120 Size 120 SR DC Fuse, 125 A, 2000 V, Silver-Plated Brass
- MPN: S079458
- PPN: FER-S079458
CAD
$3446.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life. To complete these fuse-links Mersen recommende to use the standard microswitch (ref. G310023, MCR3E1-5N).
Specifications
Key Specifications
- Rated voltage DC IEC
- 2000 V
- AC or DC
- DC
- Fuse Size
- 120
- Clearing I2t At Rated Voltage
- 9200 A²s
- Design Details
- aR
- Indication System Type
- Striker
- Connection/Terminal Type
- L Brackets
- Power Dissipation at Rated Current Value
- 87.5 W
- Length
- 8.54 in
- Weight
- 1.984 lb
Ampere Rating125 A
Speed/CharacteristicaR
MountingBolted
Max. Rated Breaking Capacity DC100 kA
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Brass
Body/Insulating MaterialCeramic
Width1.73 in
Height2.47 in
