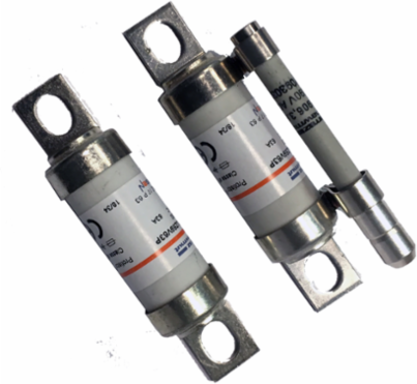

Mersen R221252 Protistor® 17x49 High-Speed Fuse-Link, 71 A, 690 VAC, Current Limiting, Ceramic Body
- MPN: R221252
- PPN: FER-R221252
CAD
$125.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The 690V Protistor® BS88-4 fuse-links provide maximum flexibility in equipment design and ultimate protection for protection of power semiconductors.These fuse-links are defined as per IEC 60269-1 and -4 , VDE 636-23 and BS88-4 for a worldwide acceptance.The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Key Specifications
- Rated voltage AC IEC
- 690 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- aR
- Mounting
- Bolted
- Melting I2t
- 240 A²s
- Connection/Terminal Material
- Copper
- Body/Insulating Material
- Ceramic
- Length
- 3.04 in
Ampere Rating71 A
AC or DCAC
Fuse Size17x49
Clearing I2t At Rated Voltage1510 A²s
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeL Brackets
Power Dissipation at Rated Current Value24 W
Weight0.077 lb
