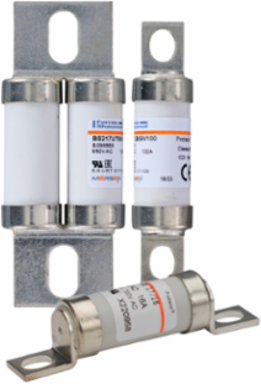

Mersen G220967 Protistor® 17x49 High-Speed Fuse 63 A 690 V Grit 200 kA Breaking Capacity
- MPN: G220967
- PPN: FER-G220967
CAD
$111.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Extremely high breaking capacity fuses: Protection of power semiconductors as per IEC standard 60269-1 and -4 690V voltage rating as per IEC 33 gR class (current ratings 12 to 90A) as per VDE 636-23 - Clearing all overloads - Improved safety and protection - Enabling selective coordination with all fuses within distribution circuit aR class (current ratings 100A) according to VDE 636-23 and IEC 60269-4 Connection as per: - German standard DIN 43653/00C - British standard BS88-4 These fuses are UL Recognized
Specifications
Key Specifications
- Rated voltage AC UL
- 700 V
- Rated voltage AC IEC
- 690 V
- ROHS Compliant
- Yes
- Fuse Size
- 17x49
- Clearing I2t At Rated Voltage
- 1950 A²s
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Connection/Terminal Material
- Copper
- Body/Insulating Material
- Ceramic
- Length
- 3.04 in
Rated voltage DC UL600 V
Ampere Rating63 A
AC or DCAC
MountingBolted
Melting I2t310 A²s
Design DetailsgRB
Connection/Terminal TypeL Brackets
Power Dissipation at Rated Current Value14.5 W
Weight0.086 lb
