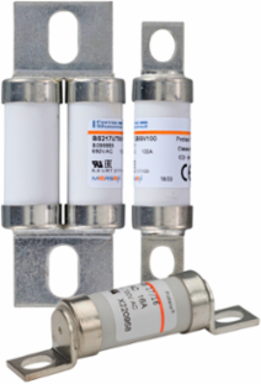

Mersen R075915 Protistor 2x17x49 High-Speed Fuse, 145A, 690VAC, Ceramic Insulation

MPN: R075915
PPN: FER-R075915

$92.67

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Extremely high breaking capacity fuses: Protection of power semiconductors as per IEC standard 60269-1 and -4 690V voltage rating as per IEC 33 gR class (current ratings 12 to 90A) as per VDE 636-23 - Clearing all overloads - Improved safety and protection - Enabling selective coordination with all fuses within distribution circuit aR class (current ratings 100A) according to VDE 636-23 and IEC 60269-4 Connection as per: - German standard DIN 43653/00C - British standard BS88-4 These fuses are UL Recognized

Specifications

Key Specifications

Rated voltage AC UL	700 V
Rated voltage AC IEC	690 V
ROHS Compliant	Yes
Fuse Size	2x17x49
Clearing I2t At Rated Voltage	15700 A²s
AC Max I.R./Breaking Capacity: I1	200 kA
Indication System Type	Striker
Connection/Terminal Type	L Brackets
Power Dissipation at Rated Current Value	28.5 W
Length	3.55 in
Weight	0.209 lb

Rated voltage DC UL	700 V
Ampere Rating	145 A
AC or DC	AC
Mounting	Bolted
Melting I2t	1730 A²s
Indication System	Yes
Connection/Terminal Material	Copper
Body/Insulating Material	Ceramic
Width	1.79 in
Height	0.94 in
