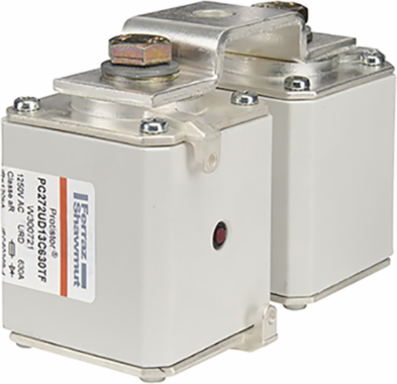

Mersen S300741 Protistor® 2x73 Type PLAF Threaded Fuse-Link 2800 A 850 V
Mersen S300741 Protistor® 2x73 Type PLAF Threaded Fuse-Link 2800 A 850 V
- MPN: S300741
- PPN: FER-S300741
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2416.59/ EA
Description
The 1250V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Specifications
- Rated voltage AC IEC
- 850 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- aR
- Mounting
- Bolted
- Melting I2t
- 3020 kA²s
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- Ceramic
- Width
- 6.71 in
- Height
- 3.09 in
Ampere Rating2800 A
AC or DCAC
Fuse Size2x73
Clearing I2t At Rated Voltage15000 kA²s
AC Max I.R./Breaking Capacity: I1100 kA
Indication System TypeStriker
Connection/Terminal TypePlates with Metric Threaded Holes
Power Dissipation at Rated Current Value440 W
Length3.07 in
Weight6.834 lb
