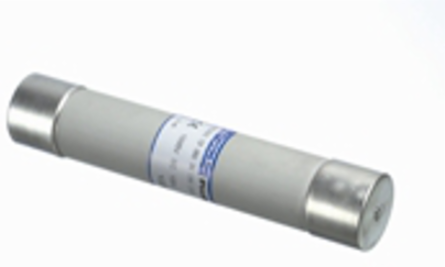

Mersen R093096 Protistor Semiconductor Fuse, Size 36x250, 2000VDC, 1A, 30kA Breaking Capacity
- MPN: R093096
- PPN: FER-R093096
CAD
$1087.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
Specifications
Key Specifications
| Rated voltage DC IEC | 2000 V |
|---|---|
| AC or DC | DC |
| Fuse Size | 36x250 |
| Max. Rated Breaking Capacity DC | 30 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Ceramic |
| Length | 9.84 in |
| Ampere Rating | 1 A |
|---|---|
| Speed/Characteristic | gR |
| Mounting | Clip |
| Design Details | gRB |
| Connection/Terminal Type | Ferrule |
| Power Dissipation at Rated Current Value | 2 W |
| Weight | 1.345 lb |
