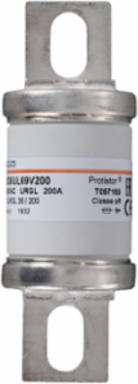

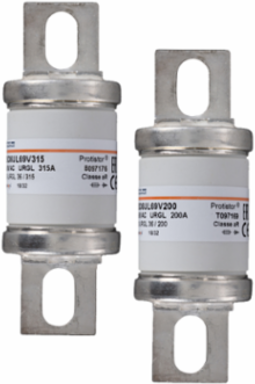

Mersen T097169 Protistor BS88-4 Fuse 36x55 Inch 180 A 690 VAC without Trip Indicator
- MPN: T097169
- PPN: FER-T097169
CAD
$344.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Extremely high breaking capacity fuses: Protection of power semiconductors as per IEC standard 60269-1 and -4 690V voltage rating as per IEC 33 aR class (current ratings from 75 to 800A) as per VDE 636-23 and IEC 60269.4 Design without indicator
Specifications
Key Specifications
| Rated voltage AC IEC | 690 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | aR |
| Mounting | Bolted |
| Melting I2t | 5350 A²s |
| Design Details | gRB |
| Connection/Terminal Type | L Brackets |
| Power Dissipation at Rated Current Value | 35.7 W |
| Weight | 0.476 lb |
| Ampere Rating | 200 A |
|---|---|
| AC or DC | AC |
| Fuse Size | 36x55 |
| Clearing I2t At Rated Voltage | 25500 A²s |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Copper |
| Body/Insulating Material | Ceramic |
| Length | 3.23 in |
