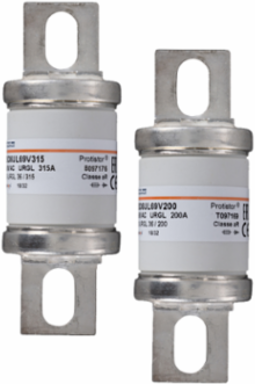

Mersen V097170 Protistor® Size 36x55 aR 200 A 690 V Fuse, 200 kA Breaking Capacity

MPN: V097170
UPC: 3605340143447
PPN: FER-V097170

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$781.87/ EA

Qty:

Loading add to cart quantity...

Description

Extremely high breaking capacity fuses: Protection of power semiconductors as per IEC standard 60269-1 and -4 690V voltage rating as per IEC 33 aR class (current ratings from 75 to 800A) as per VDE 636-23 and IEC 60269.4 Design without indicator

Specifications

Rated voltage AC IEC: 690 V

ROHS Compliant: Yes

Speed/Characteristic: aR

Mounting: Bolted

Melting I2t: 9510 A²s

Design Details: gRB

Connection/Terminal Type: L Brackets

Power Dissipation at Rated Current Value: 33.1 W

Weight: 0.476 lb

Ampere Rating250 A

AC or DCAC

Fuse Size36x55

Clearing I2t At Rated Voltage46000 A²s

AC Max I.R./Breaking Capacity: I1200 kA

Connection/Terminal MaterialCopper

Body/Insulating MaterialCeramic

Length3.23 in
