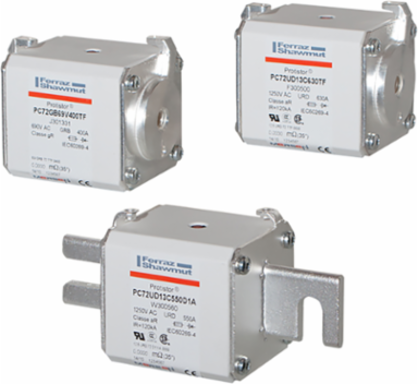

Mersen L301724 Protistor® Square Body Fuse-Link 72 Inch 550 A 690 VAC gR Class
Mersen L301724 Protistor® Square Body Fuse-Link 72 Inch 550 A 690 VAC gR Class
- MPN: L301724
- UPC: 3605340345766
- PPN: FER-L301724
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1337.15/ EA
Description
The 690V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® gR have been engineered to provide full range protection to eliminate all overloads and short circuit fault. Each fuse is assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Specifications
- Rated voltage AC IEC
- 690 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- gR
- Mounting
- Bolted
- Melting I2t
- 84.1 kA²s
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- Ceramic
- Width
- 2.32 in
- Height
- 2.48 in
Ampere Rating550 A
AC or DCAC
Fuse Size72
Clearing I2t At Rated Voltage495 kA²s
AC Max I.R./Breaking Capacity: I1150 kA
Indication System TypeStriker
Connection/Terminal TypeDIN 110 Blades
Power Dissipation at Rated Current Value78 W
Length5.25 in
Weight1.617 lb
