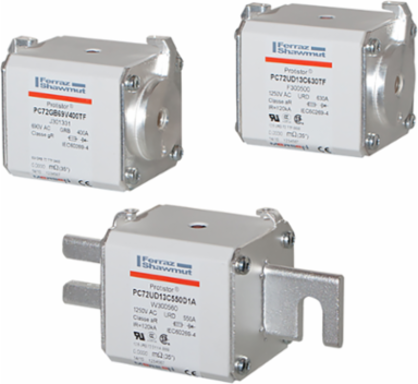

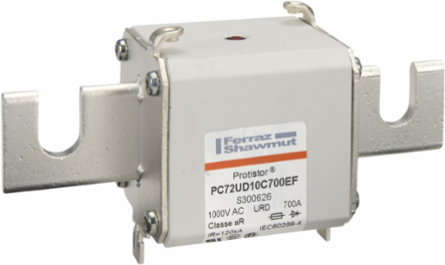

Mersen S300626 Protistor® Size 72 aR Ultra-Fast Acting Fuse-Link 700 A 1000 V
Mersen S300626 Protistor® Size 72 aR Ultra-Fast Acting Fuse-Link 700 A 1000 V
- MPN: S300626
- UPC: 3605340331202
- PPN: FER-S300626
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$896.13/ EA
Description
These 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Specifications
- Rated voltage AC UL
- 1100 V
- Ampere Rating
- 700 A
- AC or DC
- AC
- Fuse Size
- 72
- Clearing I2t At Rated Voltage
- 815 kA²s
- AC Max I.R./Breaking Capacity: I1
- 167 kA
- Indication System Type
- Striker
- Connection/Terminal Type
- Open Slot Blades
- Power Dissipation at Rated Current Value
- 140 W
- Length
- 5.88 in
- Weight
- 1.671 lb
Rated voltage AC IEC1000 V
ROHS CompliantYes
Speed/CharacteristicaR
MountingBolted
Melting I2t141.9 kA²s
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialCeramic
Width2.32 in
Height2.48 in
