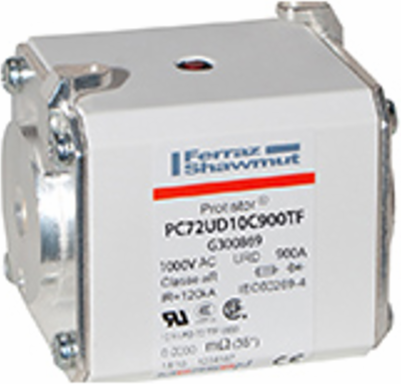

Mersen G300869 Protistor 72 Type TTF Threaded Terminal Fuse 900 A 1000 V aR Class
Mersen G300869 Protistor 72 Type TTF Threaded Terminal Fuse 900 A 1000 V aR Class
- MPN: G300869
- UPC: 3605340334692
- PPN: FER-G300869
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1470.61/ EA
Description

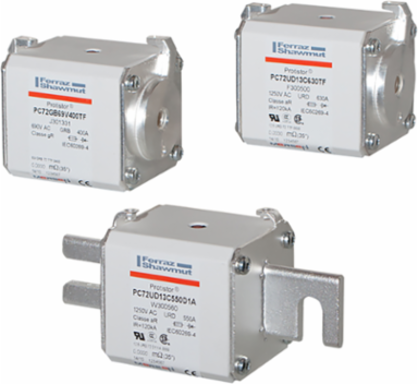

These 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Specifications
- Rated voltage AC UL
- 1100 V
- Ampere Rating
- 900 A
- AC or DC
- AC
- Fuse Size
- 72
- Clearing I2t At Rated Voltage
- 1800 kA²s
- AC Max I.R./Breaking Capacity: I1
- 167 kA
- Indication System Type
- Striker
- Connection/Terminal Type
- Flush ends
- Power Dissipation at Rated Current Value
- 152 W
- Length
- 2.91 in
- Weight
- 1.764 lb
Rated voltage AC IEC1000 V
ROHS CompliantYes
Speed/CharacteristicaR
MountingBolted
Melting I2t312 kA²s
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Brass
Body/Insulating MaterialCeramic
Width2.32 in
Height2.48 in
