Weidmuller 1607530000 SL 3.50/05/180F 3.2SN OR BX
- MPN: 1607530000
- PPN: WDM-1607530000
CAD
$2.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

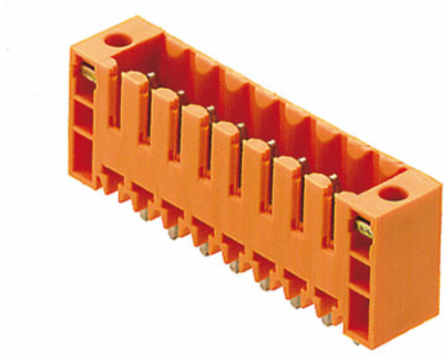

PCB plug-in connector, male header, Flange, THT solder connection, 3.50 mm, Number of poles: 5, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
| Institute (UR) | UR |
|---|---|
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 10 A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR) | E60693 |
|---|---|
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group D / UL 1059) | 10 A |
Approvals
| Approvals | CSA, EAC, UR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 24.5 mm |
|---|---|
| Height | 14.3 mm |
| Height of lowest version | 11.1 mm |
| Depth (inches) | 0.295 inch |
| Width (inches) | 0.965 inch |
|---|---|
| Height (inches) | 0.563 inch |
| Depth | 7.5 mm |
| Net weight | 1.81 g |
Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|---|
| Rated current, max. number of poles (Tu=20°C) | 12 A |
| Rated current, max. number of poles (Tu=40°C) | 10 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 2.5 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 2.5 kV |
| Rated current, min. number of poles (Tu=20°C) | 17 A |
|---|---|
| Rated current, min. number of poles (Tu=40°C) | 14.5 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 160 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 2.5 kV |
| Short-time withstand current resistance | 3 x 1s with 100 A |
Material Data
| Insulating material | PBT |
|---|---|
| Colour chart (similar) | RAL 2000 |
| Comparative Tracking Index (CTI) | ≥ 200 |
| UL 94 flammability rating | V-0 |
| Contact material | CuSn |
| Layer structure of solder connection | 5-7 µm Sn glossy |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, max. | 100 °C |
| Colour | orange |
|---|---|
| Insulating material group | IIIa |
| Insulation strength | ≥ 108 Ω |
| GWFI | 960 °C |
| Contact surface | tinned |
| Layer structure of plug contact | 5-7 undefined Sn glossy |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -30 °C |
Classifications
| ETIM 6.0 | EC002637 |
|---|---|
| eClass 9.0 | 27-44-04-02 |
| eClass 10.0 | 27-44-04-02 |
| ETIM 7.0 | EC002637 |
|---|---|
| eClass 9.1 | 27-44-04-02 |
| UNSPSC | 30-21-18-10 |
Packing
| Packaging | Box |
|---|---|
| VPE width | 91 mm |
| VPE length | 39 mm |
|---|---|
| VPE height | 101 mm |
System Specifications
| Product family | OMNIMATE Signal - series BL/SL 3.50 |
|---|---|
| Mounting onto the PCB | THT solder connection |
| Pitch in inches (P) | 0.138 inch |
| Number of poles | 5 |
| Solder pin length (l) | 3.2 mm |
| Tolerance of solder pin position | ± 0.1 mm |
| Solder pin dimensions = d tolerance | 0 / -0,03 mm |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| L1 in inches | 0.551 inch |
| Pin series quantity | 1 |
| Touch-safe protection acc. to DIN VDE 0470 | IP 10 |
| Can be coded | Yes |
| Plugging force/pole, max. | 10 N |
| Type of connection | Board connection |
|---|---|
| Pitch in mm (P) | 3.5 mm |
| Outgoing elbow | 180° |
| Number of solder pins per pole | 1 |
| Solder pin length tolerance | +0.1 / -0.3 mm |
| Solder pin dimensions | d = 1.2 mm, Octagonal |
| Solder eyelet hole diameter (D) | 1.4 mm |
| L1 in mm | 14 mm |
| Number of rows | 1 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from back-of-hand touch |
| Volume resistance | 6.00 mΩ |
| Plugging cycles | 25 |
| Pulling force/pole, max. | 10 N |
Notes

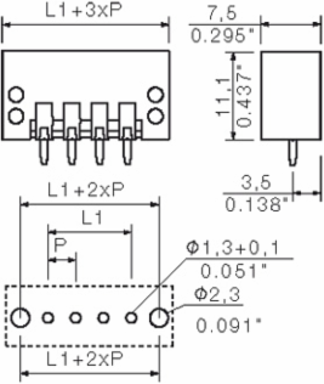

| Notes | Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. For additional mechanical support for male connectors with screw flange (…F), we recommend an additional cable gland with fastening screws (sheet metal screw ISO 1481-ST 2.2x4.5 C or ISO 7049-ST 2.2x4.5 C – see Accessories). Cable gland only permitted before soldering. |
|---|
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
Rated Data Acc. To Csa
| Institute (CSA) | CSA |
|---|---|
| Rated voltage (Use group B / CSA) | 300 V |
| Rated current (Use group B / CSA) | 10 A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (CSA) | 154685-1318353 |
|---|---|
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current (Use group D / CSA) | 10 A |
