Weidmuller 1790320000 SL 3.50/16/90G 3.2SN BK BX
- MPN: 1790320000
- PPN: WDM-1790320000
CAD
$4.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

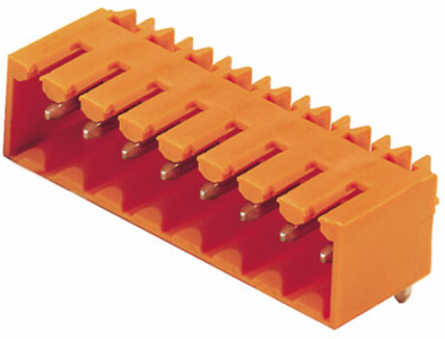

PCB plug-in connector, male header, closed side, THT solder connection, 3.50 mm, Number of poles: 16, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 10 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Approvals
- Approvals
- CSA, EAC, UR
- UL File Number Search
- E60693
ROHSConform

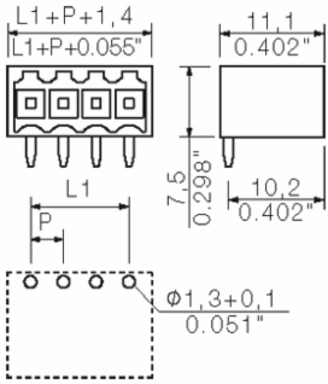

Dimensions And Weights
- Width
- 57.4 mm
- Height
- 10.7 mm
- Height of lowest version
- 7.5 mm
- Depth (inches)
- 0.437 inch
Width (inches)2.26 inch
Height (inches)0.421 inch
Depth11.1 mm
Net weight4.7 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 12 A
- Rated current, max. number of poles (Tu=40°C)
- 10 A
Rated current, min. number of poles (Tu=20°C)17 A
Rated current, min. number of poles (Tu=40°C)14.5 A
Material Data
- Insulating material
- PBT
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 200
- GWFI
- 960 °C
- Layer structure of solder connection
- 2-4 µm Ni / 5-8 µm Sn glossy
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Colourblack
Insulating material groupIIIa
Insulation strength≥ 108 Ω
Contact surfacetinned
Layer structure of plug contact2-4 undefined Ni / 5-8 undefined Sn glossy
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-30 °C
Classifications
- ETIM 6.0
- EC002637
- eClass 9.0
- 27-44-04-02
- eClass 10.0
- 27-44-04-02
ETIM 7.0EC002637
eClass 9.127-44-04-02
Packing
- Packaging
- Box
- VPE width
- 60 mm
VPE length60 mm
VPE height145 mm
System Specifications
- Product family
- OMNIMATE Signal - series BL/SL 3.50
- Mounting onto the PCB
- THT solder connection
- Pitch in inches (P)
- 0.138 inch
- Number of poles
- 16
- Solder pin length (l)
- 3.2 mm
- Tolerance of solder pin position
- ± 0.20 mm
- Solder pin dimensions = d tolerance
- 0 / -0,03 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- L1 in inches
- 2.067 inch
- Pin series quantity
- 1
- Touch-safe protection acc. to DIN VDE 0470
- IP 10
- Plugging cycles
- 25
- Pulling force/pole, max.
- 10 N
Type of connectionBoard connection
Pitch in mm (P)3.5 mm
Outgoing elbow90°
Number of solder pins per pole1
Solder pin length tolerance+0.1 / -0.3 mm
Solder pin dimensionsd = 1.2 mm, Octagonal
Solder eyelet hole diameter (D)1.4 mm
L1 in mm52.5 mm
Number of rows1
Touch-safe protection acc. to DIN VDE 57 106Safe from back-of-hand touch
Can be codedYes
Plugging force/pole, max.10 N
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 10 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)154685-1318353
Rated voltage (Use group D / CSA)300 V
Rated current (Use group D / CSA)10 A
