Weidmuller 1122600000 SL 7.62HP/09/180G 3.2SN BK BX
- MPN: 1122600000
- PPN: WDM-1122600000
CAD
$3.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

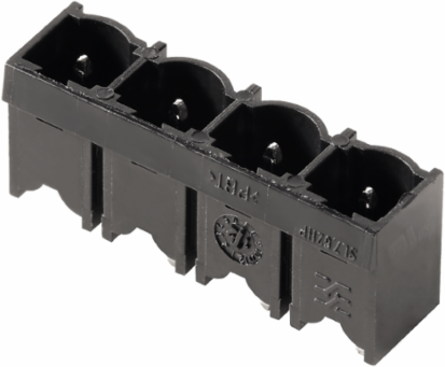

PCB plug-in connector, male header, closed side, THT solder connection, 7.62 mm, Number of poles: 9, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group C / UL 1059)
- 20 A
- Clearance distance, min.
- 6.5 mm
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group C / UL 1059)300 V
Rated current (Use group B / UL 1059)20 A
Rated current (Use group D / UL 1059)5 A
Creepage distance, min.11.2 mm
Approvals
- Approvals
- cURus, EAC
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Height
- 15 mm
- Height of lowest version
- 11.8 mm
- Depth (inches)
- 0.331 inch
Height (inches)0.591 inch
Depth8.4 mm
Net weight3.851 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 26 A
- Rated current, max. number of poles (Tu=40°C)
- 21 A
- Rated voltage for surge voltage class / pollution degree III/2
- 500 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 6 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 6 kV
- Clearance, min.
- 6.5 mm
Rated current, min. number of poles (Tu=20°C)29 A
Rated current, min. number of poles (Tu=40°C)25 A
Rated voltage for surge voltage class / pollution degree II/2630 V
Rated voltage for surge voltage class / pollution degree III/3400 V
Rated impulse voltage for surge voltage class/ pollution degree III/26 kV
Short-time withstand current resistance3 x 1s with 180 A
Creepage distance, min.8.1 mm
Material Data
- Insulating material
- PBT
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 200
- UL 94 flammability rating
- V-0
- Contact material
- Copper alloy
- Layer structure of solder connection
- 2-3 µm Ni / 2-4 µm Sn matt
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Colourblack
Insulating material groupIIIa
Insulation strength≥ 108 Ω
GWFI960 °C
Contact surfacetinned
Layer structure of plug contact2-3 µm Ni / 2-4 µm Sn matt
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002637
- eClass 9.0
- 27-44-04-02
- eClass 10.0
- 27-44-04-02
ETIM 7.0EC002637
eClass 9.127-44-04-02
Packing
- Packaging
- Box
- VPE width
- 115 mm
VPE length35 mm
VPE height167 mm
System Specifications
- Product family
- OMNIMATE Power - series BL/SL 7.62HP
- Mounting onto the PCB
- THT solder connection
- Pitch in inches (P)
- 0.3 inch
- Number of poles
- 9
- Solder pin length (l)
- 3.2 mm
- Solder pin dimensions
- 1.0 x 1.0 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- L1 in inches
- 2.4 inch
- Pin series quantity
- 1
- Touch-safe protection acc. to DIN VDE 0470
- IP20 plugged
- Plugging cycles
- 25
Type of connectionBoard connection
Pitch in mm (P)7.62 mm
Outgoing elbow180°
Number of solder pins per pole1
Tolerance of solder pin position± 0.1 mm
Solder eyelet hole diameter (D)1.3 mm
L1 in mm60.96 mm
Number of rows1
Touch-safe protection acc. to DIN VDE 57 106Safe from finger touch, plugged
Can be codedYes
Notes
- Notes

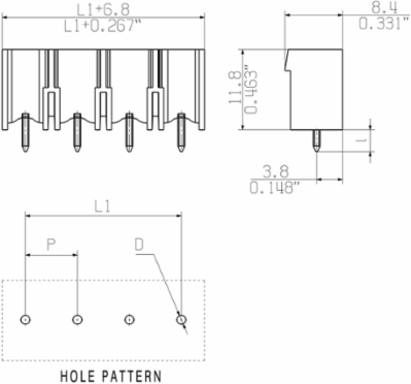

- Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 300 V
- Rated voltage (Use group D / CSA)
- 600 V
- Rated current (Use group C / CSA)
- 20 A
Rated voltage (Use group C / CSA)300 V
Rated current (Use group B / CSA)20 A
Rated current (Use group D / CSA)5 A
