Weidmuller 1761022001 SL-SMT 3.50/08/180F 1.5SN BK BX

MPN: 1761022001
PPN: WDM-1761022001

$3.33

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

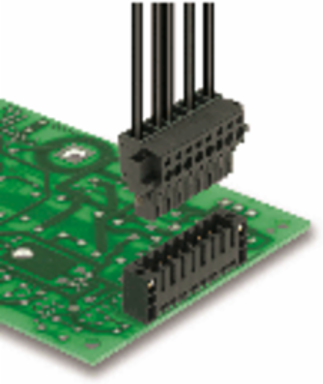

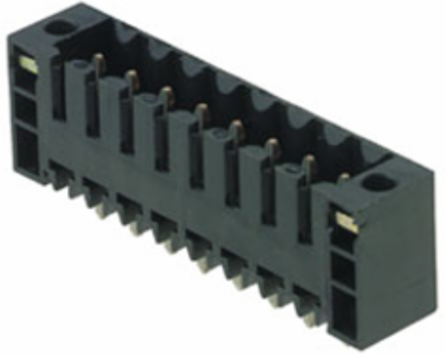

PCB plug-in connector, male header, Flange, THT/THR solder connection, 3.50 mm, Number of poles: 8, 180°, Solder pin length (l): 1.5 mm, tinned, black, Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (UR)	UR
Rated voltage (Use group B / UL 1059)	300 V
Rated current (Use group B / UL 1059)	10 A
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (UR)	E60693
Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group D / UL 1059)	10 A

Approvals

Approvals	CSA, EAC, UR
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	35 mm
Height	12.6 mm
Height of lowest version	11.1 mm
Depth (inches)	0.295 inch

Width (inches)	1.378 inch
Height (inches)	0.496 inch
Depth	7.5 mm
Net weight	3.08 g

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984
Rated current, max. number of poles (Tu=20°C)	12 A
Rated current, max. number of poles (Tu=40°C)	10 A
Rated voltage for surge voltage class / pollution degree III/2	160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	2.5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	2.5 kV

Rated current, min. number of poles (Tu=20°C)	15 A
Rated current, min. number of poles (Tu=40°C)	13 A
Rated voltage for surge voltage class / pollution degree II/2	320 V
Rated voltage for surge voltage class / pollution degree III/3	160 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	2.5 kV
Short-time withstand current resistance	3 x 1s with 100 A

Material Data

Insulating material	LCP GF
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	≥ 175
Moisture Level (MSL)	1
GWIT	930 °C
Contact material	CuSn
Layer structure of solder connection	2-3 µm Ni / 5-7 µm Sn
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	100 °C
Temperature range, installation, max.	100 °C

Colour	black
Insulating material group	IIIa
Insulation strength	≥ 108 Ω
UL 94 flammability rating	V-0
GWFI	960 °C
Contact surface	tinned
Layer structure of plug contact	2-3 µm Ni / 5-7 µm Sn
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-30 °C

Classifications

ETIM 6.0	EC002637
eClass 9.0	27-44-04-02
eClass 10.0	27-44-04-02

ETIM 7.0	EC002637
eClass 9.1	27-44-04-02
UNSPSC	30-21-18-10

Packing

Packaging	Box
VPE width	72 mm

VPE length	58 mm
VPE height	112 mm

System Specifications

Product family	OMNIMATE Signal - series BL/SL 3.50

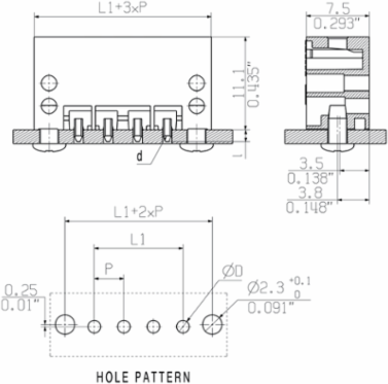

Mounting onto the PCB	THT/THR solder connection
Pitch in inches (P)	0.138 inch
Number of poles	8
Solder pin length (l)	1.5 mm
Tolerance of solder pin position	± 0.1 mm
Solder pin dimensions = d tolerance	0 / -0,03 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
Template aperture diameter	2.1 mm
L1 in inches	0.965 inch
Pin series quantity	1
Touch-safe protection acc. to DIN VDE 0470	IP 10
Can be coded	Yes
Plugging cycles	25
Pulling force/pole, max.	6 N

Type of connection	Board connection
Pitch in mm (P)	3.5 mm
Outgoing elbow	180°
Number of solder pins per pole	1
Solder pin length tolerance	0 / -0.3 mm
Solder pin dimensions	d = 1.2 mm, Octagonal
Solder eyelet hole diameter (D)	1.4 mm
Outside diameter of solder pad	2.3 mm
L1 in mm	24.5 mm
Number of rows	1
Touch-safe protection acc. to DIN VDE 57 106	Safe from back-of-hand touch
Volume resistance	4.50 mΩ
Tightening torque for screw flange, max.	0.1 Nm
Plugging force/pole, max.	6 N

Notes

Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Diameter of solder eyelet D = 1.4+0.1mm Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. For additional mechanical support for male connectors with screw flange (…F), we recommend an additional cable gland with fastening screws (sheet metal screw ISO 1481-ST 2.2x4.5 C or ISO 7049-ST 2.2x4.5 C – see Accessories). Cable gland only permitted before soldering.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Rated Data Acc. To Csa

Institute (CSA)	CSA
Rated voltage (Use group B / CSA)	300 V
Rated current (Use group B / CSA)	10 A
Reference to approval values	Specifications are maximum values, details - see approval certificate.
