Weidmuller 1761642001 SL-SMT 3.50/12/90G 1.5SN BK BX
- MPN: 1761642001
- PPN: WDM-1761642001
CAD
$3.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

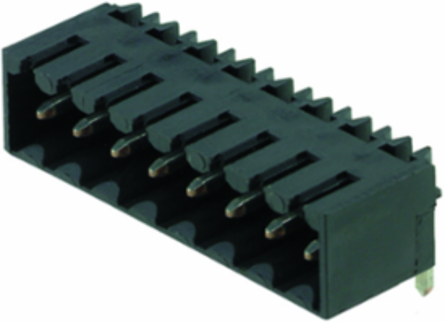

PCB plug-in connector, male header, closed side, THT/THR solder connection, 3.50 mm, Number of poles: 12, 90°, Solder pin length (l): 1.5 mm, tinned, black, Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 10 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Approvals
- Approvals
- CSA, EAC, UR
- UL File Number Search
- E60693
ROHSConform

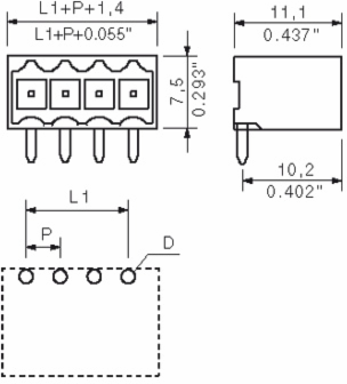

Dimensions And Weights
- Width
- 43.4 mm
- Height
- 9 mm
- Height of lowest version
- 7.5 mm
- Depth (inches)
- 0.437 inch
Width (inches)1.709 inch
Height (inches)0.354 inch
Depth11.1 mm
Net weight3.84 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 12 A
- Rated current, max. number of poles (Tu=40°C)
- 10 A
- Rated voltage for surge voltage class / pollution degree III/2
- 160 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 2.5 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 2.5 kV
Rated current, min. number of poles (Tu=20°C)15 A
Rated current, min. number of poles (Tu=40°C)13 A
Rated voltage for surge voltage class / pollution degree II/2320 V
Rated voltage for surge voltage class / pollution degree III/3160 V
Rated impulse voltage for surge voltage class/ pollution degree III/22.5 kV
Short-time withstand current resistance3 x 1s with 100 A
Material Data
- Insulating material
- LCP GF
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 175
- Moisture Level (MSL)
- 1
- GWIT
- 930 °C
- Contact material
- CuSn
- Layer structure of plug contact
- 2-3 µm Ni / 5-7 µm Sn
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -30 °C
Colourblack
Insulating material groupIIIa
Insulation strength≥ 108 Ω
UL 94 flammability ratingV-0
GWFI960 °C
Contact surfacetinned
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC002637
- eClass 9.0
- 27-44-04-02
- eClass 10.0
- 27-44-04-02
ETIM 7.0EC002637
eClass 9.127-44-04-02
UNSPSC30-21-18-10
Packing
- Packaging
- Box
- VPE width
- 80 mm
VPE length65 mm
VPE height105 mm
System Specifications
- Product family
- OMNIMATE Signal - series BL/SL 3.50
- Mounting onto the PCB
- THT/THR solder connection
- Pitch in inches (P)
- 0.138 inch
- Number of poles
- 12
- Solder pin length (l)
- 1.5 mm
- Tolerance of solder pin position
- ± 0.15 mm
- Solder pin dimensions = d tolerance
- 0 / -0,03 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- Template aperture diameter
- 2.1 mm
- L1 in inches
- 1.516 inch
- Pin series quantity
- 1
- Touch-safe protection acc. to DIN VDE 0470
- IP 10
- Can be coded
- Yes
- Plugging force/pole, max.
- 6 N
Type of connectionBoard connection
Pitch in mm (P)3.5 mm
Outgoing elbow90°
Number of solder pins per pole1
Solder pin length tolerance0 / -0.3 mm
Solder pin dimensionsd = 1.2 mm, Octagonal
Solder eyelet hole diameter (D)1.4 mm
Outside diameter of solder pad2.3 mm
L1 in mm38.5 mm
Number of rows1
Touch-safe protection acc. to DIN VDE 57 106Safe from back-of-hand touch
Volume resistance4.50 mΩ
Plugging cycles25
Pulling force/pole, max.6 N
Notes
- Notes
- Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Diameter of solder eyelet D = 1.4+0.1mm Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 10 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1176845
Rated voltage (Use group D / CSA)300 V
Rated current (Use group D / CSA)10 A
