Weidmuller 1796620000 SL-SMT 5.00HC/16/180 1.5SN BK BX
- MPN: 1796620000
- PPN: WDM-1796620000
CAD
$4.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

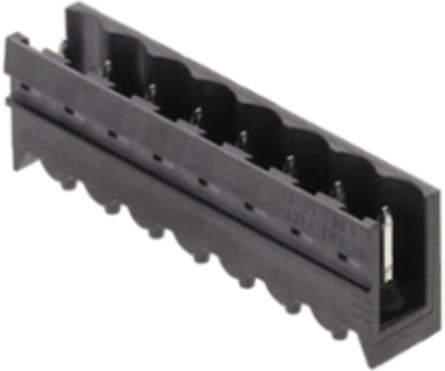

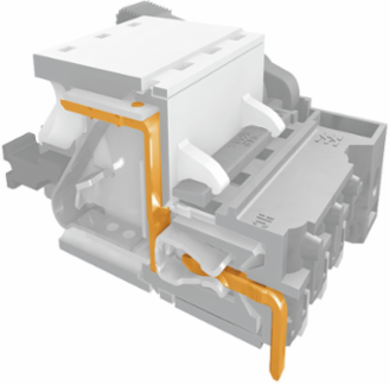

PCB plug-in connector, male header, open side, THT/THR solder connection, 5.00 mm, Number of poles: 16, 180°, Solder pin length (l): 1.5 mm, tinned, black, Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
| Institute (UR) | UR |
|---|---|
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 18.5 A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR) | E60693 |
|---|---|
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group D / UL 1059) | 10 A |
Approvals
| Approvals | CSA, EAC, UR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|

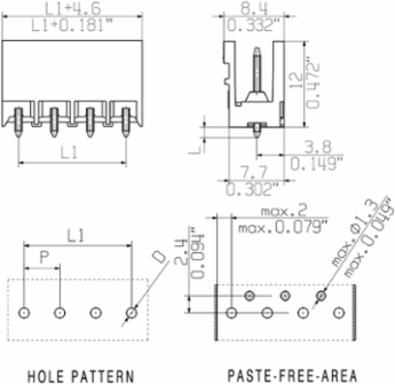

Dimensions And Weights
| Width | 80 mm |
|---|---|
| Height | 13.5 mm |
| Height of lowest version | 12 mm |
| Depth (inches) | 0.335 inch |
| Width (inches) | 3.15 inch |
|---|---|
| Height (inches) | 0.531 inch |
| Depth | 8.5 mm |
| Net weight | 6.26 g |
Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|---|
| Rated current, max. number of poles (Tu=20°C) | 19 A |
| Rated current, max. number of poles (Tu=40°C) | 16.5 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Rated current, min. number of poles (Tu=20°C) | 27.5 A |
|---|---|
| Rated current, min. number of poles (Tu=40°C) | 24 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
Material Data
| Insulating material | LCP GF |
|---|---|
| Colour chart (similar) | RAL 9011 |
| Comparative Tracking Index (CTI) | ≥ 175 |
| Moisture Level (MSL) | 1 |
| GWIT | 930 °C |
| Contact material | CuMg |
| Layer structure of solder connection | 1-3 µm Ni / 2-4 µm Sn matt |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, max. | 100 °C |
| Colour | black |
|---|---|
| Insulating material group | IIIa |
| Insulation strength | ≥ 108 Ω |
| UL 94 flammability rating | V-0 |
| GWFI | 960 °C |
| Contact surface | tinned |
| Layer structure of plug contact | 1-3 µm Ni / 2-4 µm Sn matt |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -30 °C |
Classifications
| ETIM 6.0 | EC002637 |
|---|---|
| eClass 9.0 | 27-44-04-02 |
| eClass 10.0 | 27-44-04-02 |
| ETIM 7.0 | EC002637 |
|---|---|
| eClass 9.1 | 27-44-04-02 |
| UNSPSC | 30-21-18-10 |
Packing
| Packaging | Box |
|---|---|
| VPE width | 134 mm |
| VPE length | 32 mm |
|---|---|
| VPE height | 192 mm |
System Specifications
| Product family | OMNIMATE Signal - series BL/SL 5.00 |
|---|---|
| Mounting onto the PCB | THT/THR solder connection |
| Pitch in inches (P) | 0.197 inch |
| Number of poles | 16 |
| Solder pin length (l) | 1.5 mm |
| Tolerance of solder pin position | ± 0.20 mm |
| Solder pin dimensions = d tolerance | 0 / -0,03 mm |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| L1 in inches | 2.953 inch |
| Pin series quantity | 1 |
| Plugging cycles | 25 |
| Pulling force/pole, max. | 5.5 N |
| Type of connection | Board connection |
|---|---|
| Pitch in mm (P) | 5 mm |
| Outgoing elbow | 180° |
| Number of solder pins per pole | 1 |
| Solder pin length tolerance | +0.1 / -0.2 mm |
| Solder pin dimensions | d = 1.2 mm, Octagonal |
| Solder eyelet hole diameter (D) | 1.5 mm |
| L1 in mm | 75 mm |
| Number of rows | 1 |
| Can be coded | Yes |
| Plugging force/pole, max. | 7 N |
Notes
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
Rated Data Acc. To Csa
| Institute (CSA) | CSA |
|---|---|
| Rated voltage (Use group B / CSA) | 300 V |
| Rated current (Use group B / CSA) | 15 A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (CSA) | 200039-1176845 |
|---|---|
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current (Use group D / CSA) | 15 A |
